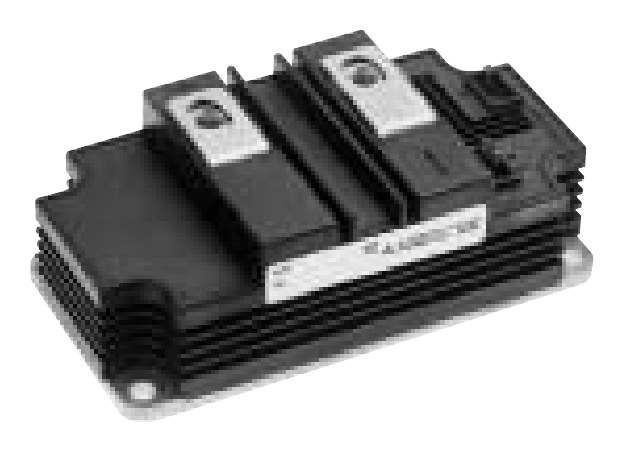

CM400HG-66H Mitsubishi - IGBT Module

CM400HG-66H Description

CM400HG-66H is a 3300 V / 400 A single HVIGBT module (3rd version) from Mitsubishi Electric. Typical applications: traction drives, high-reliability converters and inverters and DC choppers.

USComponent supplies CM400HG-66H and other power semiconductors, including discontinued types. Request a quote for price and lead time - we reply within 24 hours.

Summary of Features

Target Applications

Mitsubishi CM400HG-66H is used for Traction drives, high-reliability converters and inverters and DC choppers.

Key Specifications

CM400HG-66H is a 3300 V / 400 A single HVIGBT module (3rd version) from Mitsubishi Electric. Source: manufacturer datasheet.

Parameter	Value
Manufacturer	Mitsubishi Electric
Configuration	Single (1 element in a pack), IGBT + free-wheeling diode
Collector-emitter voltage (VCES)	3300 V
Gate-emitter voltage (VGES)	±20 V
Collector current (IC)	400 A at TC = 90 °C
Pulse collector current (ICM)	800 A
Maximum power dissipation (PC)	4100 W at TC = 25 °C (IGBT part)
VCE(sat)	3.30 V typ. / 4.20 V max. at IC = 400 A, VGE = 15 V, Tj = 25 °C
Switching energy (Tj = 125 °C)	Eon 0.64 J, Eoff 0.52 J per pulse typ. at 1650 V / 400 A
Total gate charge (Qg)	2.8 µC typ.
Thermal resistance Rth(j-c)	30.0 K/kW IGBT, 60.0 K/kW diode (max.)
Isolation voltage (Viso)	10200 V RMS, 1 min
Junction temperature	-40 to +150 °C
Mass	0.52 kg typ.
Base plate	AlSiC
Datasheet	Available on this page (PDF)
