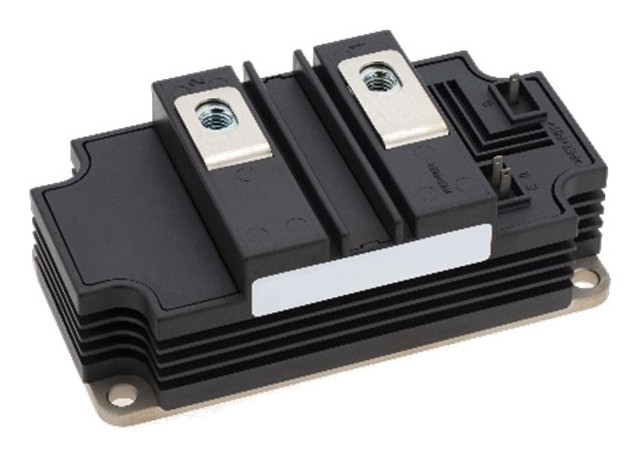

CM400HG-66X Mitsubishi - IGBT Module

CM400HG-66X Description

CM400HG-66X is a 3300 V, 400 A Mitsubishi Electric single switch HVIGBT module (X-Series HVIGBT), used for traction drives, high-reliability converters and DC choppers.

USComponent supplies CM400HG-66X and other Mitsubishi Electric power modules. Request a quote for price and lead time - we reply within 24 hours.

Summary of Features

Target Applications

Mitsubishi CM400HG-66X is used for Traction drives, high-reliability converters and DC choppers.

Key Specifications

CM400HG-66X is a 3,300 V, 400 A Mitsubishi Electric HVIGBT module. Source: manufacturer datasheet.

Parameter	Value
Product type	HVIGBT module
Configuration	Single switch (1 element)
Collector-emitter voltage (VCES)	3,300 V
Collector current (IC nom)	400 A
Technology	X-Series HVIGBT
Package	HV single package, AlSiC base plate

Technical document (PDF)  |  Request a quote for CM400HG-66X (reply within 24 hours)
