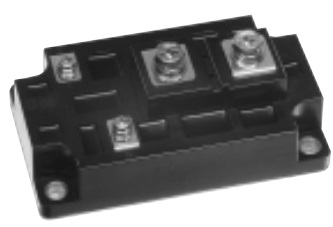

CM300HA-28 Mitsubishi IGBT Power Transistor Module

CM300HA-28 Description

Mitsubishi Power Transistor Module

Target Applications

Mitsubishi CM300HA-28 is used for UPS, Inverters, Lighting Controls, Induction Heating, Ultrasonic Cleaning, Battery Chargers, AC and DC Motor Control, High Frequency Welding, and Power Supplies.

Key Specifications

Manufacturer	Mitsubishi Electric
Configuration	Single switch (1-in-1)
VCES	1400 V
IC nom	300 A
Similar-rating parts	1MBI300JN-140 (same nominal voltage and current rating, for reference only. Package, pinout and characteristics may differ; please compare datasheets to determine suitability)

CM300HA-28 Video

Download CM300HA-28 Datasheet

Datasheet not available
