CM200DY-20 Mitsubishi - IGBT Module

Category: IGBT Modules

Specifications: 1000V, 200A

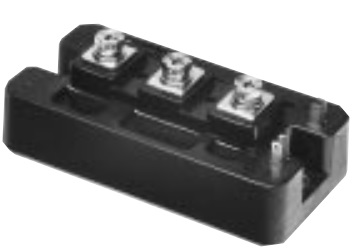

CM200DY-20, Mitsubishi, Power Transistor Module

Representative image – actual product may differ

Availability and lead time are confirmed in our quote.

  • ✓ Quote within 24 hours
  • ✓ Original manufacturer parts, inspected before shipping
  • ✓ Credit cards and NET terms accepted

Or email sales@uscomponent.com or call 1-281-968-0718.

CM200DY-20 Description

The CM200DY-20 from Mitsubishi Electric is an IGBT module with a 1200 V / 200 A rating. It is a common choice for inverter stages in AC drives, servo systems, welders and uninterruptible power supplies.

USComponent (Young & New Century LLC) supplies power modules, thyristors, diodes and other industrial components, including legacy parts. Contact us for a quote on the CM200DY-20, and please confirm ratings against the datasheet before ordering.

Target Applications

Mitsubishi CM200DY-20 is used for inverters and AC motor drives, servo drives, UPS systems, welding machines, induction heating, solar and wind power converters and other high-power switching equipment.

Key Specifications

ManufacturerMitsubishi Electric
CategoryIGBT Modules
Rated voltage1000 V
Rated current200 A
