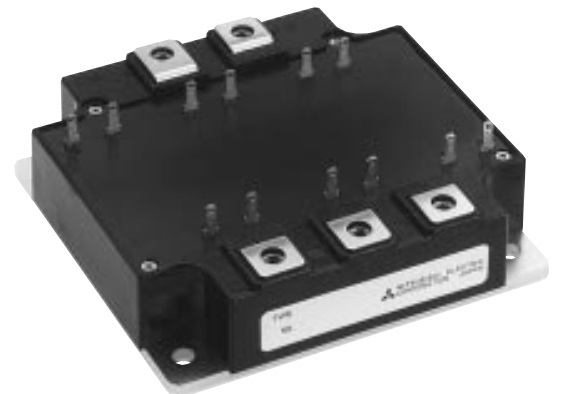

CM200TU-12F Mitsubishi - IGBT Module

CM200TU-12F Description

Mitsubishi Electric CM200TU-12F is an IGBT module rated at 600 V and 200 A. Modules like this do the heavy switching in motor drives, UPS systems, induction heaters and renewable-energy inverters.

Need the CM200TU-12F? USComponent stocks and sources power modules for repair shops, OEMs and maintenance teams worldwide. Request a quote and we'll confirm availability and lead time. Always compare against the datasheet before ordering.

Target Applications

Mitsubishi CM200TU-12F is used for General purpose inverters & Servo controls, etc.

Key Specifications

Manufacturer	Mitsubishi Electric
Configuration	Six-pack - six IGBTs in three-phase bridge configuration with free-wheel diodes
Series	F-Series
VCES	600 V
IC	200 A (TC = 25 °C)
ICM (peak)	400 A
VCE(sat) typ.	1.6 V @ 200 A
Isolation voltage	2500 Vrms (AC, 1 min)
Terminal torque	M5: 2.5 - 3.5 N·m
Mounting torque	M5: 2.5 - 3.5 N·m
Weight	680 g
Junction temperature	-40 to +150 °C
