CM50TU-24F Mitsubishi - IGBT Module

CM50TU-24F Description

The Mitsubishi Electric CM50TU-24F is an IGBT module, rated for 1200 V and 50 A. Inside, it has six switches arranged as a three-phase bridge (6-in-1). It is a common choice for inverter stages in AC drives, servo systems, welders and uninterruptible power supplies.

Looking for a replacement CM50TU-24F? USComponent can quote new and hard-to-find stock and ships worldwide. Request a quote for pricing and lead time, and double-check the datasheet to make sure it fits your application.

Summary of Features

Target Applications

Mitsubishi CM50TU-24F is used for General purpose inverter, servo drives, etc.

Key Specifications

CM50TU-24F is a 1,200 V, 50 A IGBT module, six-pack (6-in-1) configuration. Source: manufacturer datasheet.

Parameter	Value
Product type	IGBT module
Configuration	Six-pack (6-in-1)
Collector-emitter voltage (VCES)	1,200 V
Collector current (IC)	50 A

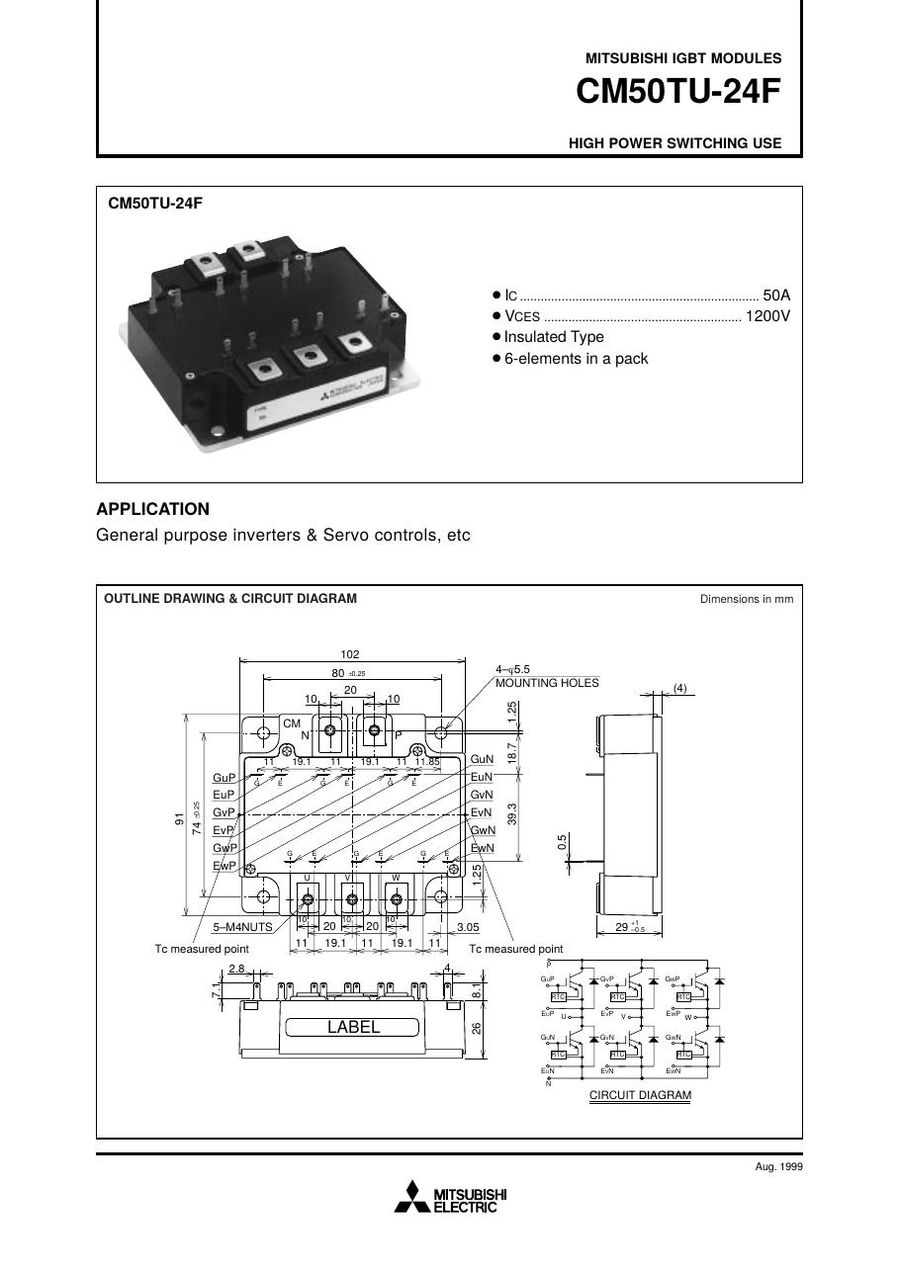

Datasheet	Available on this page (PDF)

Technical document (PDF)  |  Request a quote for CM50TU-24F (reply within 24 hours)
