CM150TU-12H Mitsubishi - IGBT Power Transistor Module

CM150TU-12H Description

Mitsubishi Electric CM150TU-12H is an IGBT module rated at 600 V and 150 A. The module contains six switches arranged as a three-phase bridge (6-in-1). Modules like this do the heavy switching in motor drives, UPS systems, induction heaters and renewable-energy inverters.

Looking for a replacement CM150TU-12H? USComponent can quote new and hard-to-find stock and ships worldwide. Request a quote for pricing and lead time, and double-check the datasheet to make sure it fits your application.

Summary of Features

Target Applications

Mitsubishi CM150TU-12H is used for inverters and AC motor drives, servo drives, UPS systems, welding machines, induction heating, solar and wind power converters and other high-power switching equipment.

Key Specifications

CM150TU-12H is a 600 V, 150 A IGBT module, six-pack (6-in-1) configuration. Source: manufacturer datasheet.

Parameter	Value
Product type	IGBT module
Configuration	Six-pack (6-in-1)
Collector-emitter voltage (VCES)	600 V
Collector current (IC)	150 A
Isolation voltage	2,500 V

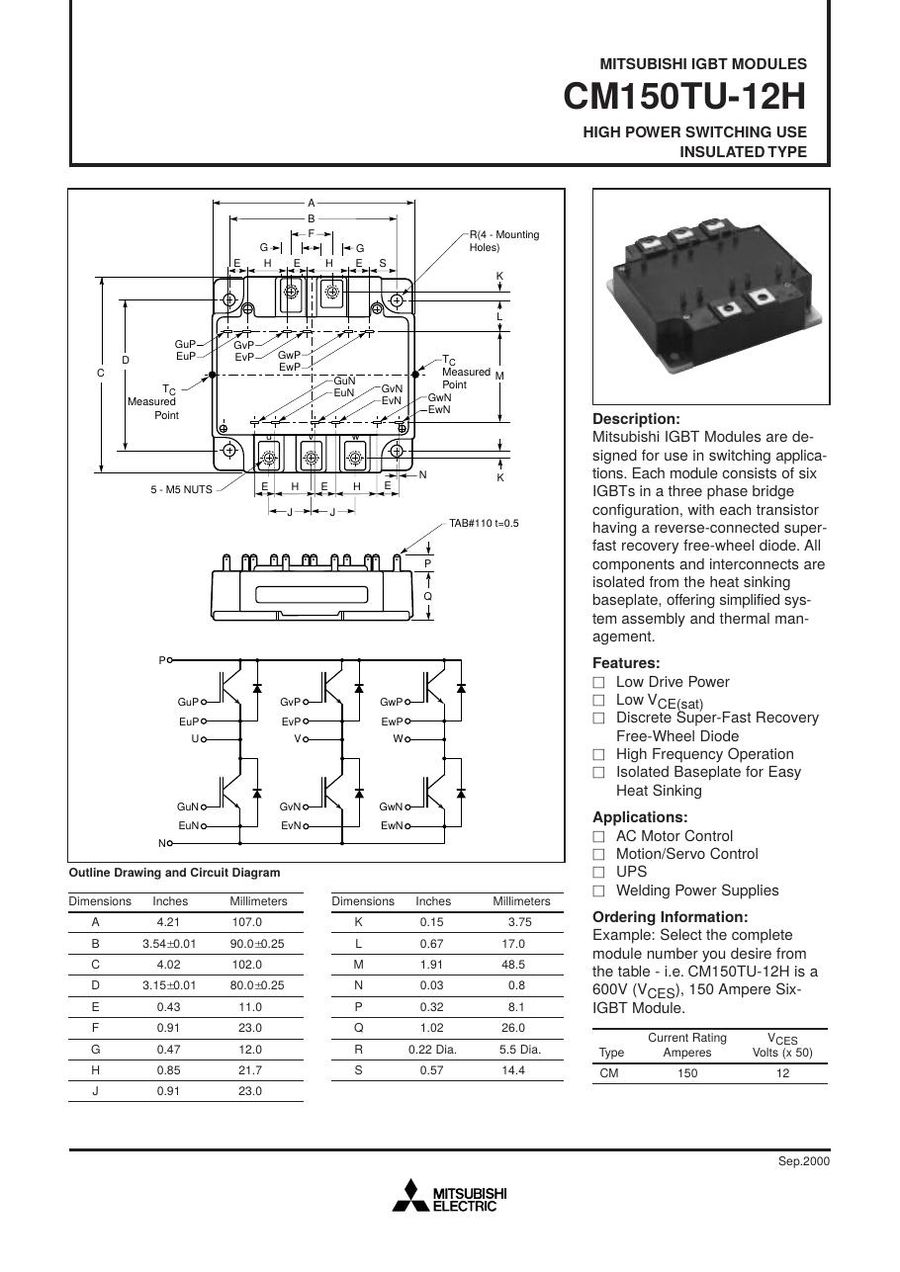

Datasheet	Available on this page (PDF)

Technical document (PDF)  |  Request a quote for CM150TU-12H (reply within 24 hours)
