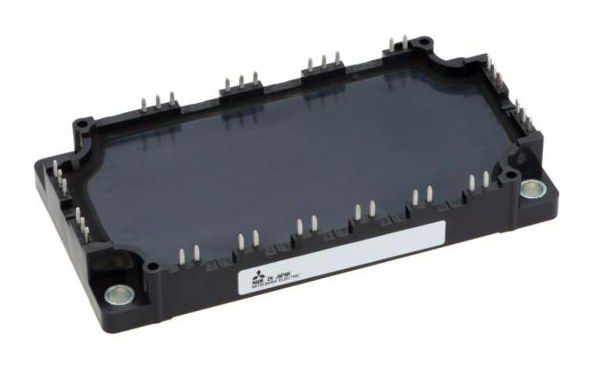

CM200TX-24T Mitsubishi - IGBT Module
CM200TX-24T Description
CM200TX-24T is a 1200 V / 200 A six-pack (3-phase inverter) IGBT module from Mitsubishi Electric (NX Type package). Typical applications: AC Motor Control, Motion/Servo Control, Power supply.
USComponent supplies CM200TX-24T and other Mitsubishi power modules. Request a quote for price and lead time - we reply within 24 hours.
Summary of Features
- Flat base type
- Copper base plate (Nickel-plating)
- RoHS Directive compliant
- Tin-plating pin terminals
- Tin-plating pressfit terminals
- UL Recognized under UL1557, File No. E323585
Target Applications
Mitsubishi CM200TX-24T is used for AC Motor Control, Motion/Servo Control, Power supply.
Key Specifications
CM200TX-24T is a 1200 V / 200 A six-pack (3-phase inverter) IGBT module from Mitsubishi Electric. Source: Mitsubishi Electric datasheet and product list.
| Parameter | Value |
|---|---|
| Manufacturer | Mitsubishi Electric |
| Product type | IGBT module |
| Series | T series |
| Configuration | Six-pack (3-phase inverter) |
| Collector-emitter voltage (VCES) | 1200 V |
| Collector current (IC) | 200 A |
| Isolation voltage (Viso) | 2,500 V RMS |
| Package | NX Type |
| Package size | 62 x 122 mm |
| Supply status (Mitsubishi) | Active |
| Datasheet | Available on this page (PDF) |
Note: the Mitsubishi datasheet covers CM200TX-24T / CM200TXP-24T.
Technical document (PDF) | Request a quote for CM200TX-24T (reply within 24 hours)
