CM200TU-12HMitsubishi - IGBT Power Transistor Module

CM200TU-12H Description

The Mitsubishi Electric CM200TU-12H is an IGBT module rated at 600 V and 200 A. Typical applications for this type of device include variable-frequency motor drives, servo drives, UPS systems, welding machines, induction heating and solar or wind inverters.

USComponent supplies power semiconductors and industrial electronic components to engineers, OEMs and maintenance teams worldwide, including legacy and hard-to-find part numbers. Please confirm ratings, package and pin-out against the manufacturer's datasheet before ordering, and request a quote for current pricing and lead time on the CM200TU-12H.

Summary of Features

Target Applications

Mitsubishi CM200TU-12H is used for inverters and AC motor drives, servo drives, UPS systems, welding machines, induction heating, solar and wind power converters and other high-power switching equipment.

Key Specifications

CM200TU-12H is a 600 V, 200 A IGBT module, six-pack (6-in-1) configuration. Source: manufacturer datasheet.

Parameter	Value
Product type	IGBT module
Configuration	Six-pack (6-in-1)
Collector-emitter voltage (VCES)	600 V
Collector current (IC)	200 A
Isolation voltage	2,500 V
Datasheet	Available on this page (PDF)

Download CM200TU-12H Datasheet

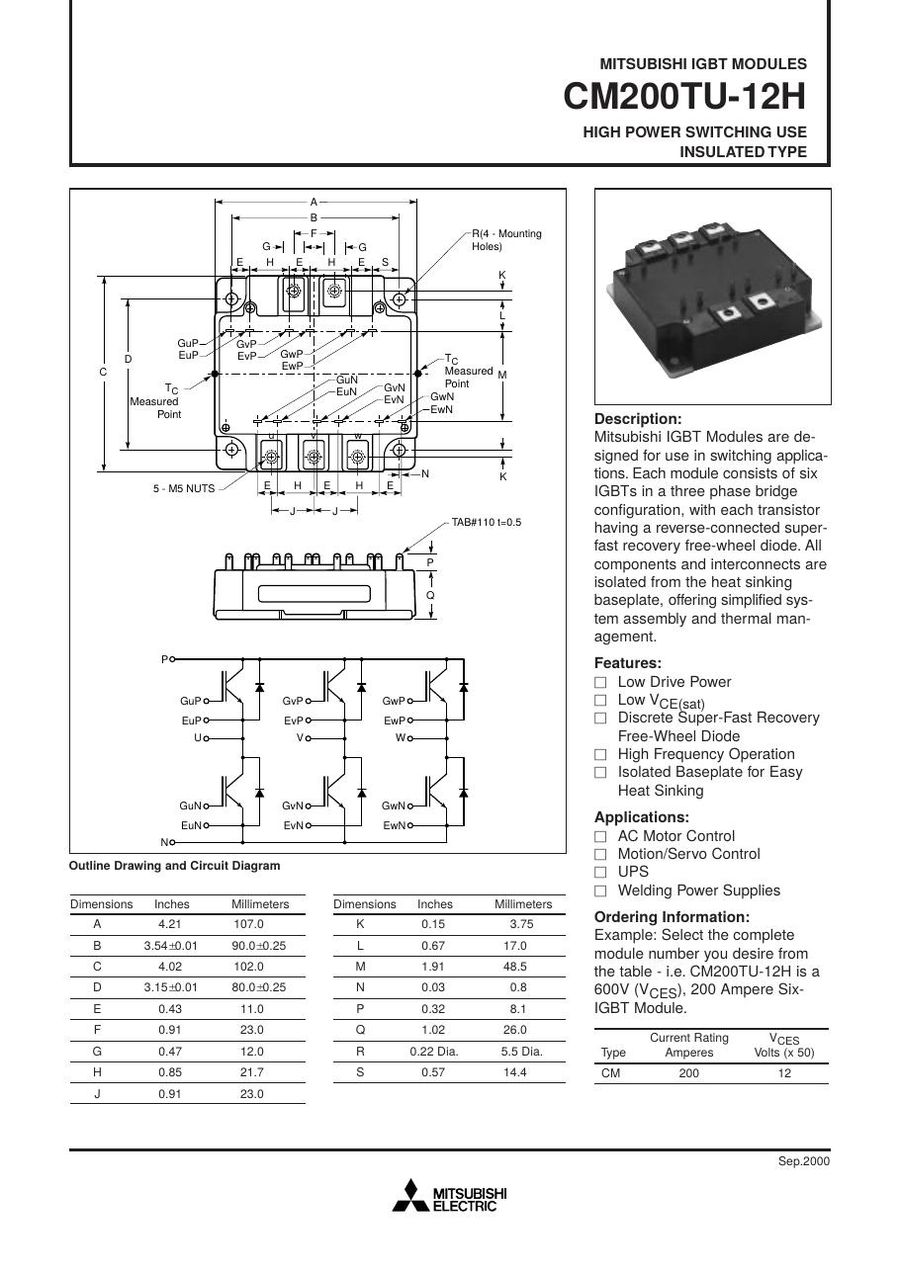

CM200TU-12H PDF Datasheet
