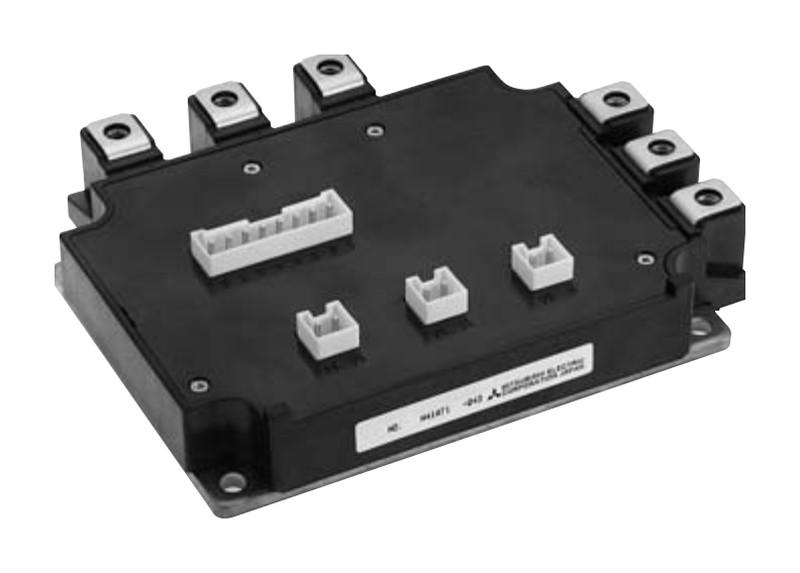

CM200TL-24NF Mitsubishi - IGBT Module

CM200TL-24NF Description

CM200TL-24NF is a 1,200 V / 200 A six-pack IGBT module from Mitsubishi Electric, NF series. Datasheet ratings: 200 A DC at TC = 72 °C, VCE(sat) 2.1 V typ. at 200 A, 2,500 V RMS isolation. Typical applications: AC drive inverters & Servo controls. It is discontinued by Mitsubishi; USComponent still sources it.

USComponent supplies CM200TL-24NF and other Mitsubishi power modules, including discontinued types. Request a quote for price and lead time - we reply within 24 hours.

Summary of Features

Target Applications

Mitsubishi CM200TL-24NF is used for AC drive inverters & Servo controls.

Key Specifications

CM200TL-24NF is a 1,200 V / 200 A six-pack IGBT module from Mitsubishi Electric, NF series. Source: Mitsubishi Electric datasheet (Feb. 2009).

Parameter	Value
Manufacturer	Mitsubishi Electric
Product type	IGBT module
Series	NF series
Configuration	Six-pack (3-phase inverter)
Collector-emitter voltage (VCES)	1,200 V
Collector current (IC, DC, TC = 72 °C)	200 A
Peak collector current (ICM, pulse)	400 A
Total power dissipation (Ptot, TC = 25 °C)	1,160 W
VCE(sat), IC = 200 A, VGE = 15 V, Tj = 25 °C	2.1 V typ. / 3.1 V max.
Gate-emitter threshold voltage VGE(th)	6 / 7 / 8 V (min. / typ. / max.)
Isolation voltage (Visol, AC 1 min)	2,500 V RMS
Junction temperature (Tj)	-40 to +150 °C
Mounting torque (to heat sink)	M5 screw: 2.5 - 3.5 N·m
Mounting torque (main terminals)	M5 screw: 2.5 - 3.5 N·m
Mass (typ.)	750 g
Supply status (Mitsubishi)	Discontinued by Mitsubishi
Applications (datasheet)	AC drive inverters & Servo controls, etc
Datasheet	Available on this page (PDF)

Technical document (PDF)  |  Request a quote for CM200TL-24NF (reply within 24 hours)
