CM100TU-24F Mitsubishi - IGBT Module

CM100TU-24F Description

The Mitsubishi Electric CM100TU-24F is an IGBT module, rated for 1200 V and 100 A. The module contains six switches arranged as a three-phase bridge (6-in-1). Modules like this do the heavy switching in motor drives, UPS systems, induction heaters and renewable-energy inverters. Many of these parts are still in service in machines built years ago, and a direct replacement is often the fastest way to get one running again.

USComponent is a BBB A+ accredited distributor that specializes in power modules and industrial components, new and legacy. Ask us for a quote on the CM100TU-24F; we ship worldwide. Please verify the ratings and package against the manufacturer's datasheet first.

Summary of Features

Target Applications

Mitsubishi CM100TU-24F is used for AC Motor Control, UPS and Battery Powered Supplies.

Key Specifications

CM100TU-24F is a 1,200 V, 100 A IGBT module, six-pack (6-in-1) configuration. Source: manufacturer datasheet.

Parameter	Value
Product type	IGBT module
Configuration	Six-pack (6-in-1)
Collector-emitter voltage (VCES)	1,200 V
Collector current (IC)	100 A

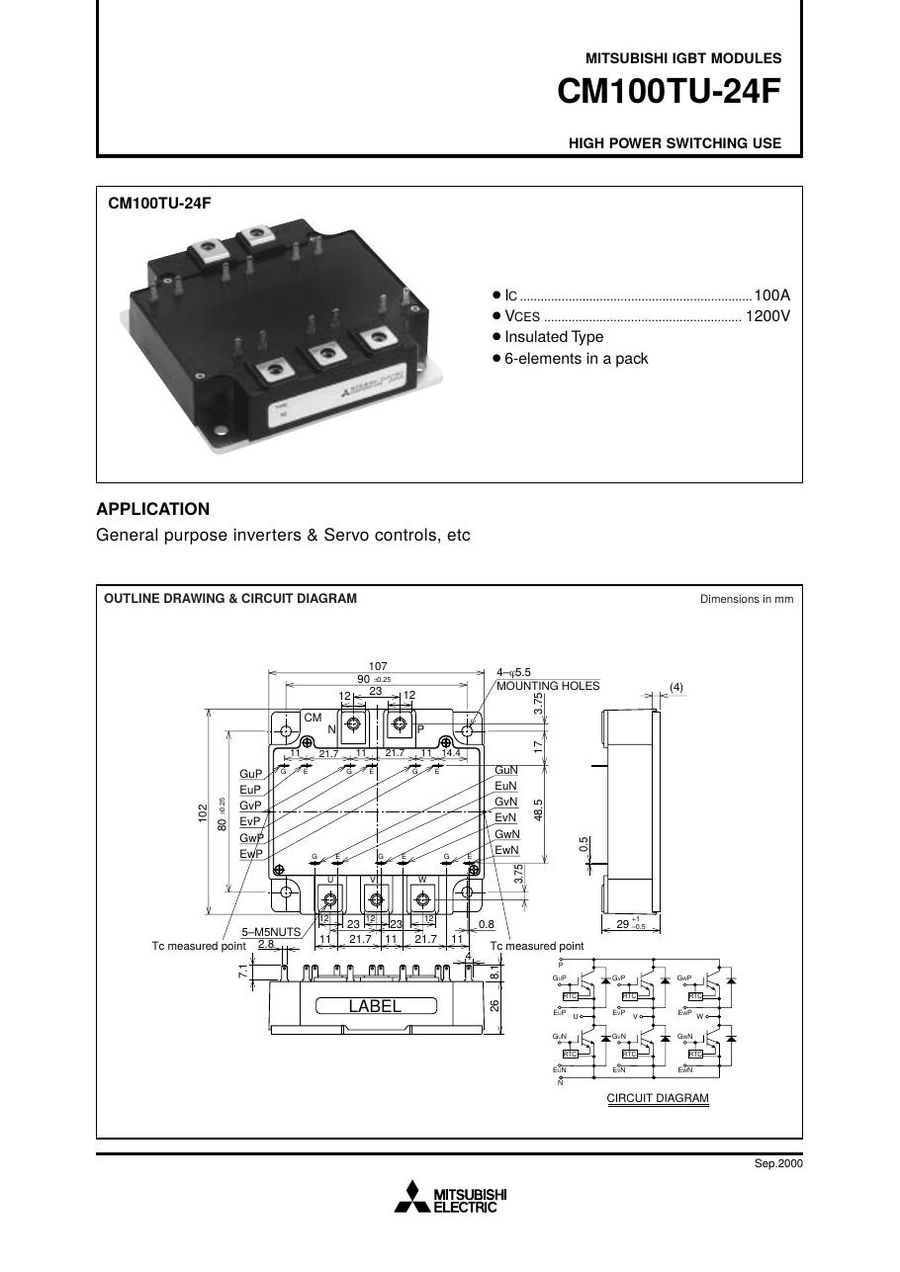

Datasheet	Available on this page (PDF)

Technical document (PDF)  |  Request a quote for CM100TU-24F (reply within 24 hours)
