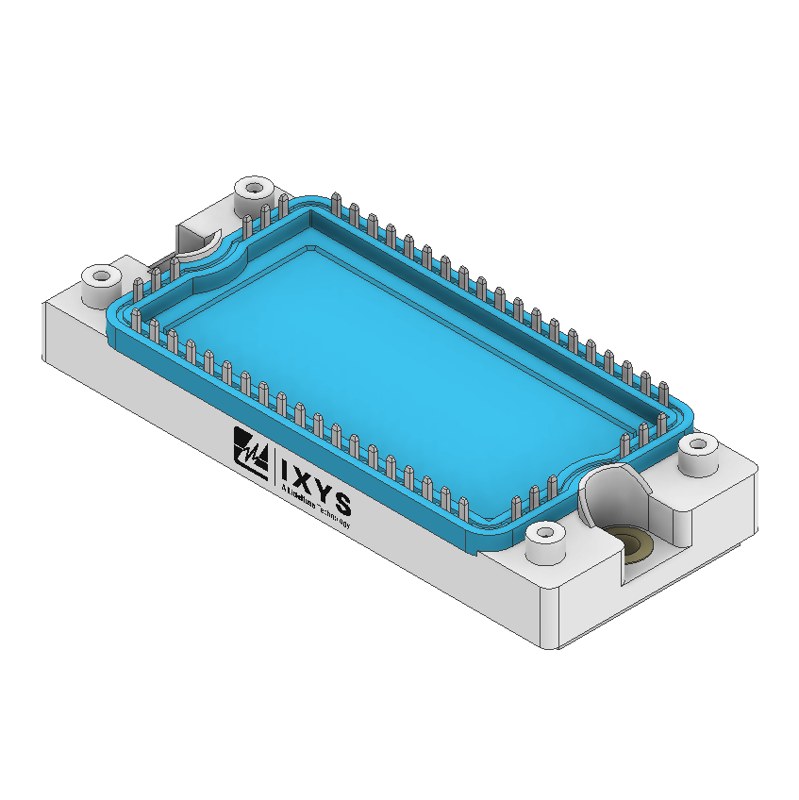

MDMA360UC1600TED IXYS - Rectifier Bridge

MDMA360UC1600TED Description

MDMA360UC1600TED is a 1600 V / 360 A rectifier bridge module from IXYS (E2-Pack package). Typical applications: diode for main rectification plus Softstart-Thyristor, For three phase bridge configurations, Supplies for DC power equipment, Input rectifiers for PWM inverter, Battery DC power supplies, Field supply for DC motors.

USComponent supplies MDMA360UC1600TED and other IXYS power modules. Request a quote for price and lead time - we reply within 24 hours.

Summary of Features

Target Applications

IXYS MDMA360UC1600TED is used for Diode for main rectification plus Softstart-Thyristor, For three phase bridge configurations, Supplies for DC power equipment, Input rectifiers for PWM inverter, Battery DC power supplies, Field supply for DC motors.

Key Specifications

MDMA360UC1600TED is a 1600 V / 360 A rectifier bridge module from IXYS (now part of Littelfuse) in a E2-Pack package. Source: IXYS (Littelfuse) datasheet and product data.

Parameter	Value
Manufacturer	IXYS (Littelfuse)
Product type	Rectifier bridge module
Configuration	Three-phase rectifier bridge + Softstart-Thyristor
Repetitive peak reverse voltage (VRRM)	1600 V
Average output current (IdAV)	360 A
Package	E2-Pack
Isolation voltage	4300 V~
Weight	175 g
Supply status	Active
Datasheet	Available on this page (PDF)

Technical document (PDF)  |  Request a quote for MDMA360UC1600TED (reply within 24 hours)
