MDMA360UB1600PTED IXYS - Rectifier Bridge

Category: Bridge Rectifiers

Specifications: 1600V, 360A

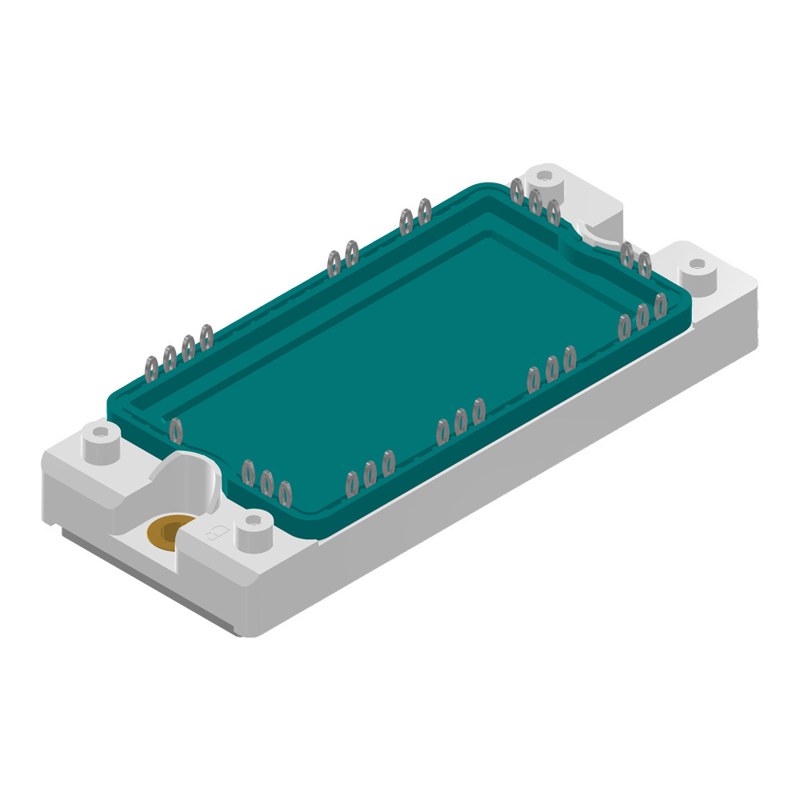

MDMA360UB1600PTED IXYS Rectifier Bridge

Representative image – actual product may differ

Availability and lead time are confirmed in our quote.

  • ✓ Quote within 24 hours
  • ✓ Original manufacturer parts, inspected before shipping
  • ✓ Credit cards and NET terms accepted

Or email sales@uscomponent.com or call 1-281-968-0718.

MDMA360UB1600PTED Description

MDMA360UB1600PTED is a 1600 V / 360 A rectifier bridge module from IXYS (E2-Pack package). Typical applications: 3~ Rectifier with brake unit for drive inverters.

USComponent supplies MDMA360UB1600PTED and other IXYS power modules. Request a quote for price and lead time - we reply within 24 hours.

Summary of Features

  • Package with DCB ceramic
  • Improved temperature and power cycling
  • Planar passivated chips
  • Very low forward voltage drop
  • Very low leakage current

Target Applications

IXYS MDMA360UB1600PTED is used for 3~ Rectifier with brake unit for drive inverters.

Key Specifications

MDMA360UB1600PTED is a 1600 V / 360 A rectifier bridge module from IXYS (now part of Littelfuse) in a E2-Pack package. Source: IXYS (Littelfuse) datasheet and product data.

ParameterValue
ManufacturerIXYS (Littelfuse)
Product typeRectifier bridge module
ConfigurationThree-phase rectifier bridge + Brake Unit + NTC
Repetitive peak reverse voltage (VRRM)1600 V
Average output current (IdAV)360 A
PackageE2-Pack
Isolation voltage4300 V~
Weight270 g
Supply statusObsolete
DatasheetAvailable on this page (PDF)

Status: IXYS / Littelfuse lists MDMA360UB1600PTED as obsolete. USComponent can still source MDMA360UB1600PTED and help you find a suitable alternative.

Technical document (PDF)  |  Request a quote for MDMA360UB1600PTED (reply within 24 hours)
