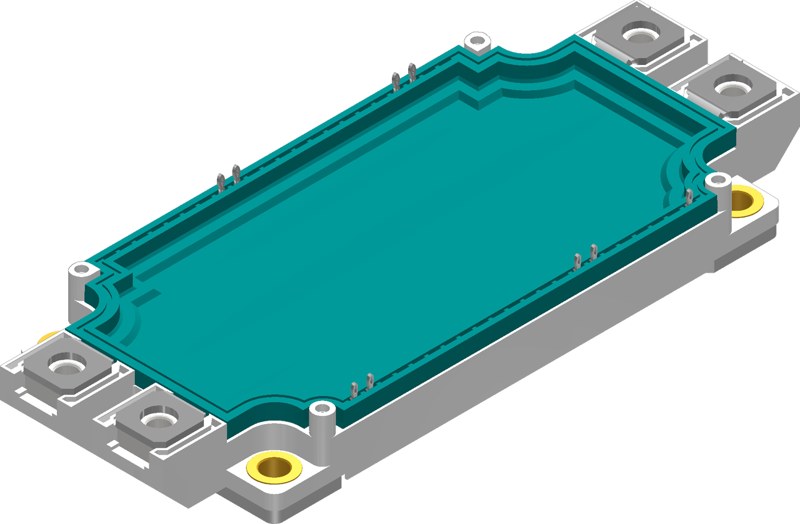

MDMA425P1600PTSF IXYS - Diode Module

MDMA425P1600PTSF Description

MDMA425P1600PTSF is a 1600 V / 425 A rectifier diode module from IXYS (SimBus F package). Typical applications: diode for main rectification, For single and three phase bridge configurations, Supplies for DC power equipment, Input rectifiers for PWM inverter, Battery DC power supplies, Field supply for DC motors.

USComponent supplies MDMA425P1600PTSF and other IXYS power modules. Request a quote for price and lead time - we reply within 24 hours.

Summary of Features

Target Applications

IXYS MDMA425P1600PTSF is used for Diode for main rectification, For single and three phase bridge configurations, Supplies for DC power equipment, Input rectifiers for PWM inverter, Battery DC power supplies, Field supply for DC motors.

Key Specifications

MDMA425P1600PTSF is a 1600 V / 425 A rectifier diode module from IXYS (now part of Littelfuse) in a SimBus F package. Source: IXYS (Littelfuse) datasheet and product data.

Parameter	Value
Manufacturer	IXYS (Littelfuse)
Product type	Rectifier diode module
Configuration	Phase leg + NTC
Repetitive peak reverse voltage (VRRM)	2 x 1600 V
Average forward current (IFAV)	425 A
Package	SimBus F
Isolation voltage	4300 V~
Weight	350 g
Supply status	Active
Datasheet	Available on this page (PDF)

Technical document (PDF)  |  Request a quote for MDMA425P1600PTSF (reply within 24 hours)
