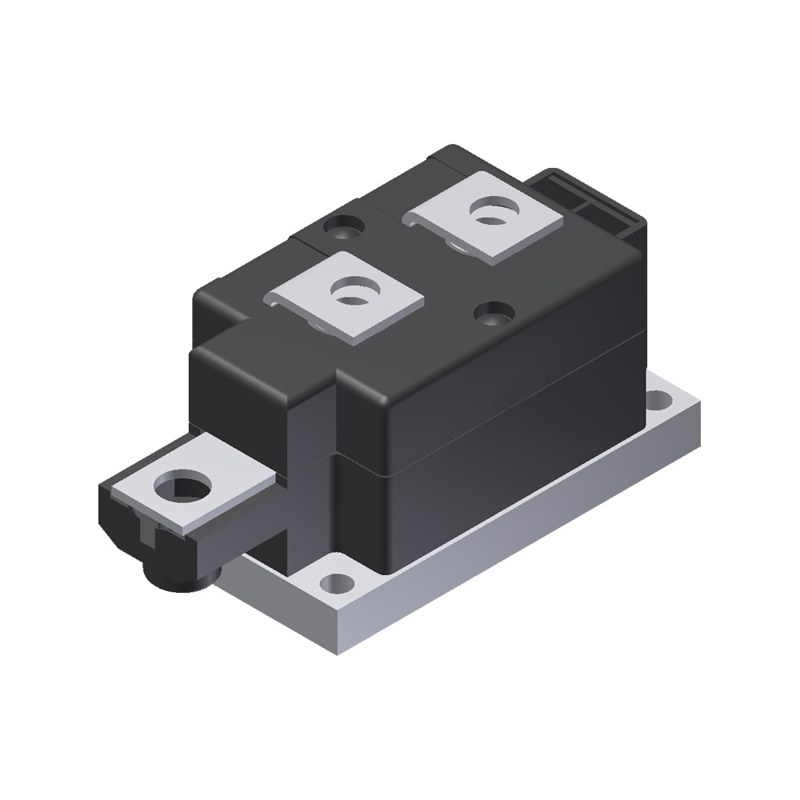

MDMA380P1600KC IXYS - Diode Module
MDMA380P1600KC Description
MDMA380P1600KC is a 1600 V / 380 A rectifier diode module from IXYS (Y1 package). Typical applications: diode for main rectification, For single and three phase bridge configurations, Supplies for DC power equipment, Input rectifiers for PWM inverter, Battery DC power supplies, Field supply for DC motors.
USComponent supplies MDMA380P1600KC and other IXYS power modules. Request a quote for price and lead time - we reply within 24 hours.
Summary of Features
- Planar passivated chips
- Very low leakage current
- Very low forward voltage drop
- Improved thermal behaviour
Target Applications
IXYS MDMA380P1600KC is used for Diode for main rectification, For single and three phase bridge configurations, Supplies for DC power equipment, Input rectifiers for PWM inverter, Battery DC power supplies, Field supply for DC motors.
Key Specifications
MDMA380P1600KC is a 1600 V / 380 A rectifier diode module from IXYS (now part of Littelfuse) in a Y1 package. Source: IXYS (Littelfuse) datasheet and product data.
| Parameter | Value |
|---|---|
| Manufacturer | IXYS (Littelfuse) |
| Product type | Rectifier diode module |
| Configuration | Phase leg |
| Repetitive peak reverse voltage (VRRM) | 2 x 1600 V |
| Average forward current (IFAV) | 380 A |
| Package | Y1 |
| Isolation voltage | 4800 V~ |
| Weight | 750 g |
| Supply status | Active |
| Datasheet | Available on this page (PDF) |
Technical document (PDF) | Request a quote for MDMA380P1600KC (reply within 24 hours)
