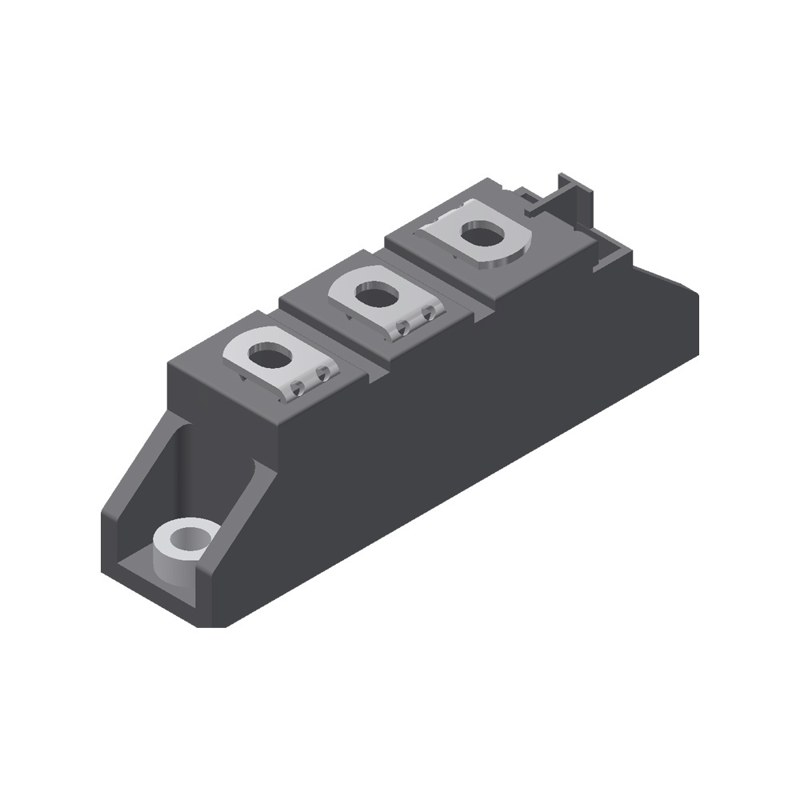

MDMA35P1600TG IXYS - Diode Module

MDMA35P1600TG Description

MDMA35P1600TG is a 1600 V / 35 A rectifier diode module from IXYS (TO-240AA package). Typical applications: diode for main rectification, For single and three phase bridge configurations, Supplies for DC power equipment, Input rectifiers for PWM inverter, Battery DC power supplies, Field supply for DC motors.

USComponent supplies MDMA35P1600TG and other IXYS power modules. Request a quote for price and lead time - we reply within 24 hours.

Summary of Features

Target Applications

IXYS MDMA35P1600TG is used for Diode for main rectification, For single and three phase bridge configurations, Supplies for DC power equipment, Input rectifiers for PWM inverter, Battery DC power supplies, Field supply for DC motors.

Key Specifications

MDMA35P1600TG is a 1600 V / 35 A rectifier diode module from IXYS (now part of Littelfuse) in a TO-240AA package. Source: IXYS (Littelfuse) datasheet and product data.

Parameter	Value
Manufacturer	IXYS (Littelfuse)
Product type	Rectifier diode module
Configuration	Phase leg
Repetitive peak reverse voltage (VRRM)	2 x 1600 V
Average forward current (IFAV)	35 A
Package	TO-240AA
Isolation voltage	4800 V~
Weight	90 g
Supply status	Active
Datasheet	Available on this page (PDF)

Technical document (PDF)  |  Request a quote for MDMA35P1600TG (reply within 24 hours)
