MDMA240UB1600ED IXYS - Rectifier Bridge

Category: Bridge Rectifiers

Specifications: 1600V, 240A

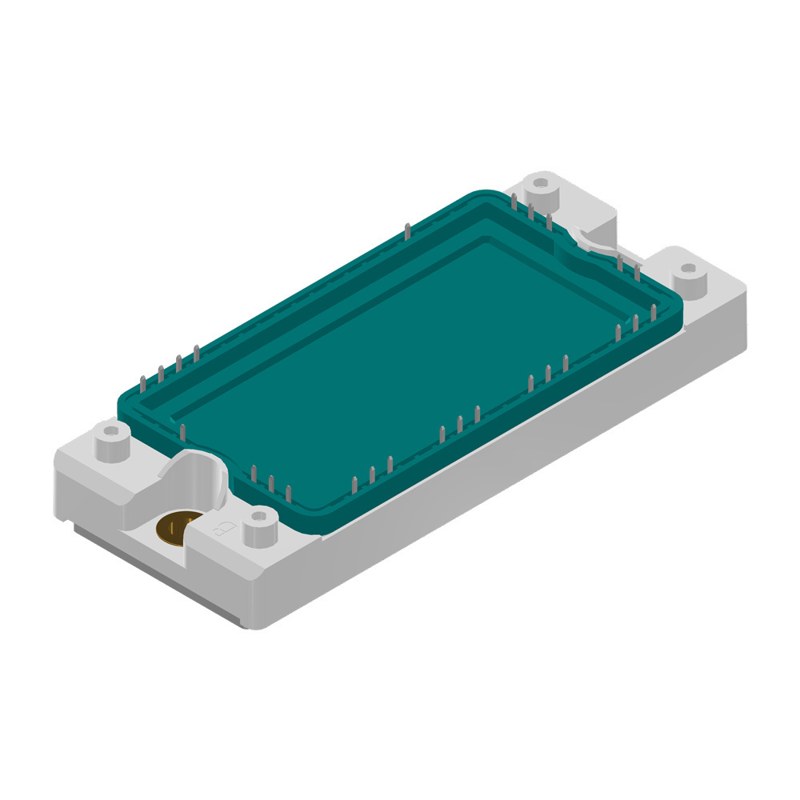

MDMA240UB1600ED IXYS Rectifier Bridge

Representative image – actual product may differ

Availability and lead time are confirmed in our quote.

  • ✓ Quote within 24 hours
  • ✓ Original manufacturer parts, inspected before shipping
  • ✓ Credit cards and NET terms accepted

Or email sales@uscomponent.com or call 1-281-968-0718.

MDMA240UB1600ED Description

MDMA240UB1600ED is a 1600 V / 240 A rectifier bridge module from IXYS (E2-Pack package). Typical applications: 3~ Rectifier with brake unit for drive inverters.

USComponent supplies MDMA240UB1600ED and other IXYS power modules. Request a quote for price and lead time - we reply within 24 hours.

Summary of Features

  • Package with DCB ceramic
  • Improved temperature and power cycling
  • Planar passivated chips
  • Very low forward voltage drop
  • Very low leakage current
  • X2PT - 2nd generation Xtreme light Punch Through
  • Short circuit rated for 10 µsec.
  • Very low gate charge
  • Low EMI
  • Square RBSOA @ 2x Ic

Target Applications

IXYS MDMA240UB1600ED is used for 3~ Rectifier with brake unit for drive inverters.

Key Specifications

MDMA240UB1600ED is a 1600 V / 240 A rectifier bridge module from IXYS (now part of Littelfuse) in a E2-Pack package. Source: IXYS (Littelfuse) datasheet and product data.

ParameterValue
ManufacturerIXYS (Littelfuse)
Product typeRectifier bridge module
ConfigurationThree-phase rectifier bridge + Brake Unit
Repetitive peak reverse voltage (VRRM)1600 V
Average output current (IdAV)240 A
PackageE2-Pack
Isolation voltage3600 V~
Weight176 g
Supply statusActive
DatasheetAvailable on this page (PDF)

Technical document (PDF)  |  Request a quote for MDMA240UB1600ED (reply within 24 hours)

Related Part Numbers

MDMA210UB1600PTED
2200V, 210A		MDMA280UB1600PTED
1600V, 280A		MDMA360UB1600PTED
1600V, 360A		MDMA450UB1600PTED
1600V, 450A
MDMA280P1600YD
1600V, 280A		MDMA210P1600YD
1600V, 210A		MDMA35P1200TG
1200V, 35A		MDMA150U1600VA
1600V, 150A
MDMA35P1600TG
1600V, 35A		MDMA140P1800TG
1800V, 140A		MDMA140P1600TG
1600V, 140A		MDMA360UC1600TED
1600V, 360A
MDMA140P1200TG
1200V, 140A		MDMA380P1600KC
1600V, 380A		MDMA1400C1600CC
1600V, 700A		MDMA425P1600PTSF
1600V, 425A
