MDMA450UB1600PTED IXYS - Rectifier Bridge

Category: Bridge Rectifiers

Specifications: 1600V, 450A

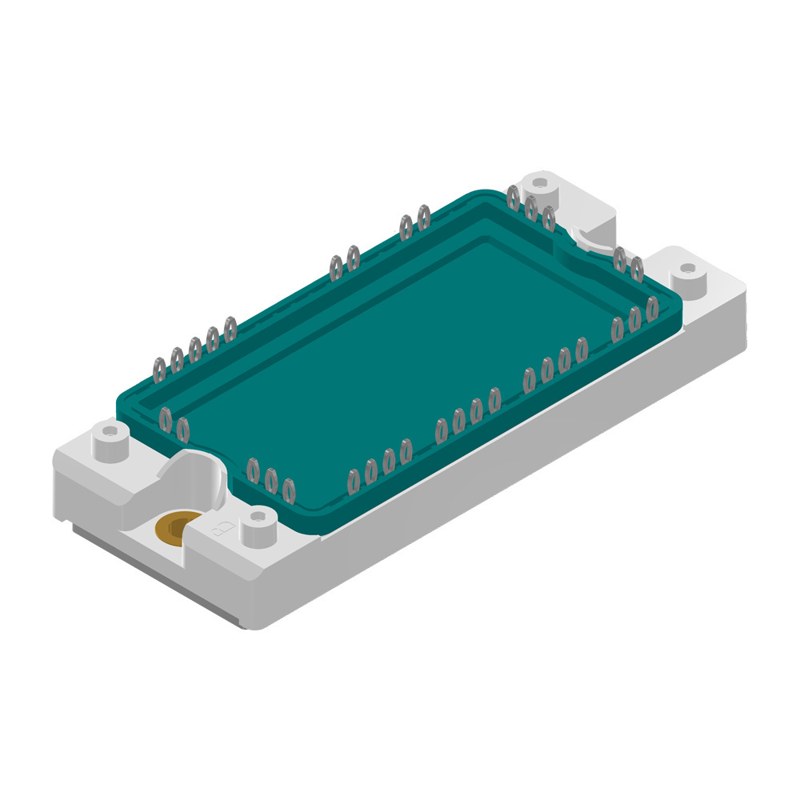

MDMA450UB1600PTED IXYS Rectifier Bridge

Representative image – actual product may differ

Availability and lead time are confirmed in our quote.

  • ✓ Quote within 24 hours
  • ✓ Original manufacturer parts, inspected before shipping
  • ✓ Credit cards and NET terms accepted

Or email sales@uscomponent.com or call 1-281-968-0718.

MDMA450UB1600PTED Description

MDMA450UB1600PTED is a 1600 V / 450 A rectifier bridge module from IXYS (E2-Pack package). Typical applications: 3~ Rectifier with brake unit for drive inverters.

USComponent supplies MDMA450UB1600PTED and other IXYS power modules. Request a quote for price and lead time - we reply within 24 hours.

Summary of Features

  • Package with DCB ceramic
  • Improved temperature and power cycling
  • Planar passivated chips
  • Very low forward voltage drop
  • Very low leakage current
  • Very low Eoff
  • Reduced Vce(sat)
  • Tjmax = 175°C
  • Reduced Rth
  • Very low gate charge

Target Applications

IXYS MDMA450UB1600PTED is used for 3~ Rectifier with brake unit for drive inverters.

Key Specifications

MDMA450UB1600PTED is a 1600 V / 450 A rectifier bridge module from IXYS (now part of Littelfuse) in a E2-Pack package. Source: IXYS (Littelfuse) datasheet and product data.

ParameterValue
ManufacturerIXYS (Littelfuse)
Product typeRectifier bridge module
ConfigurationThree-phase rectifier bridge + Brake Unit + NTC
Repetitive peak reverse voltage (VRRM)1600 V
Average output current (IdAV)450 A
PackageE2-Pack
Isolation voltage4300 V~
Weight270 g
Supply statusActive
DatasheetAvailable on this page (PDF)

Technical document (PDF)  |  Request a quote for MDMA450UB1600PTED (reply within 24 hours)

Related Part Numbers

MDMA360UB1600PTED
1600V, 360A		MDMA280UB1600PTED
1600V, 280A		MDMA210UB1600PTED
2200V, 210A		MDMA240UB1600ED
1600V, 240A
MDMA450U1600PTEH-PC
1600V, 450A		MDMA450U1600PTEH
1600V, 450A		MDMA425P1600PTSF-PC
1600V, 425A		MDMA425P1600PTSF
1600V, 425A
MDMA50P1200TG
1200V, 50A		MDMA50P1600TG
1600V, 50A		MDMA600P1600PTSF
1600V, 600A		MDMA60UC1600VC
1600V, 60A
MDMA65P1200TG
1200V, 65A		MDMA380P1600KC
1600V, 380A		MDMA65P1600TG
1600V, 65A		MDMA360UC1600TED
1600V, 360A
