FZ1500R45KL3_B5 Infineon - IGBT Module

Also written as: FZ1500R45KL3-B5

Category: IGBT Modules

Specifications: 4500V, 1500A

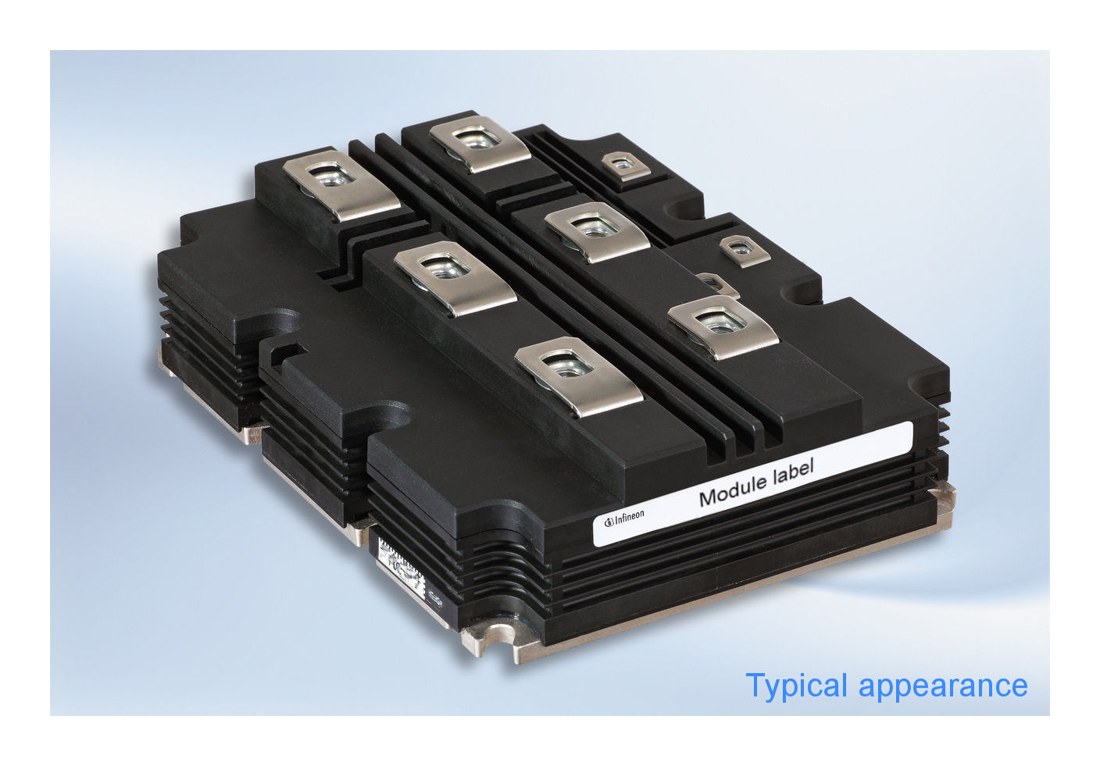

FZ1500R45KL3_B5 Infineon IGBT Module

Representative image – actual product may differ

Availability and lead time are confirmed in our quote.

  • ✓ Quote within 24 hours
  • ✓ Original manufacturer parts, inspected before shipping
  • ✓ Credit cards and NET terms accepted

Or email sales@uscomponent.com or call 1-281-968-0718.

FZ1500R45KL3_B5 Description

FZ1500R45KL3_B5 is a 4500 V / 1500 A single switch IGBT module from Infineon Technologies. Typical applications: high-power converters, Medium-voltage converters, Motor drives, Multi-level inverter, Traction drives.

USComponent supplies FZ1500R45KL3_B5 and other Infineon power modules. Request a quote for price and lead time - we reply within 24 hours.

Summary of Features

  • High DC stability
  • High dynamic robustness
  • Trench IGBT 3
  • VCE,sat with positive temperature coefficient
  • High short-circuit capability

Target Applications

Infineon FZ1500R45KL3_B5 is used for High-power converters, Medium-voltage converters, Motor drives, Multi-level inverter, Traction drives.

Key Specifications

FZ1500R45KL3_B5 is a 4500 V / 1500 A single switch IGBT module from Infineon Technologies. Source: Infineon datasheet and product table.

ParameterValue
ManufacturerInfineon Technologies
Product typeIGBT module
ConfigurationSingle switch
Collector-emitter voltage (VCES)4500 V
Nominal collector current (IC nom)1500 A
DatasheetAvailable on this page (PDF)

Technical document (PDF)  |  Request a quote for FZ1500R45KL3_B5 (reply within 24 hours)
