FZ1000R45KL3_B5 Infineon - IGBT Module

Also written as: FZ1000R45KL3-B5

Category: IGBT Modules

Specifications: 4500V, 1000A

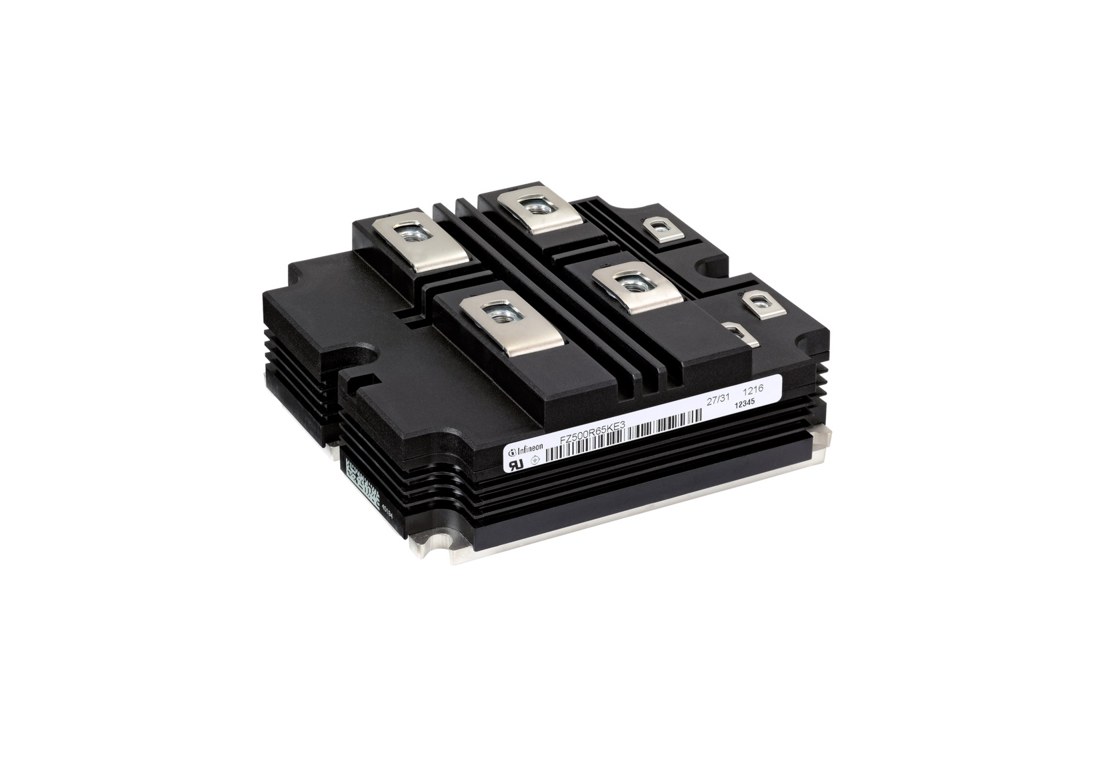

FZ1000R45KL3_B5 Infineon IGBT Module

Representative image – actual product may differ

Availability and lead time are confirmed in our quote.

  • ✓ Quote within 24 hours
  • ✓ Original manufacturer parts, inspected before shipping
  • ✓ Credit cards and NET terms accepted

Or email sales@uscomponent.com or call 1-281-968-0718.

FZ1000R45KL3_B5 Description

FZ1000R45KL3_B5 is a 4500 V / 1000 A single switch IGBT module from Infineon Technologies. Typical applications: motor drives, Traction drives, Multi-level inverter, High-power converters, Medium-voltage converters.

USComponent supplies FZ1000R45KL3_B5 and other Infineon power modules. Request a quote for price and lead time - we reply within 24 hours.

Summary of Features

  • High DC stability
  • High dynamic robustness
  • High short-circuit capability
  • Trench IGBT 3
  • VCE,sat with positive temperature coefficient

Target Applications

Infineon FZ1000R45KL3_B5 is used for Motor drives, Traction drives, Multi-level inverter, High-power converters, Medium-voltage converters.

Key Specifications

FZ1000R45KL3_B5 is a 4500 V / 1000 A single switch IGBT module from Infineon Technologies. Source: Infineon datasheet and product table.

ParameterValue
ManufacturerInfineon Technologies
Product typeIGBT module
ConfigurationSingle switch
Collector-emitter voltage (VCES)4500 V
Nominal collector current (IC nom)1000 A
DatasheetAvailable on this page (PDF)
