FZ1500R65KL7 Infineon - IGBT Module

Category: IGBT Modules

Specifications: 6500V, 1500A

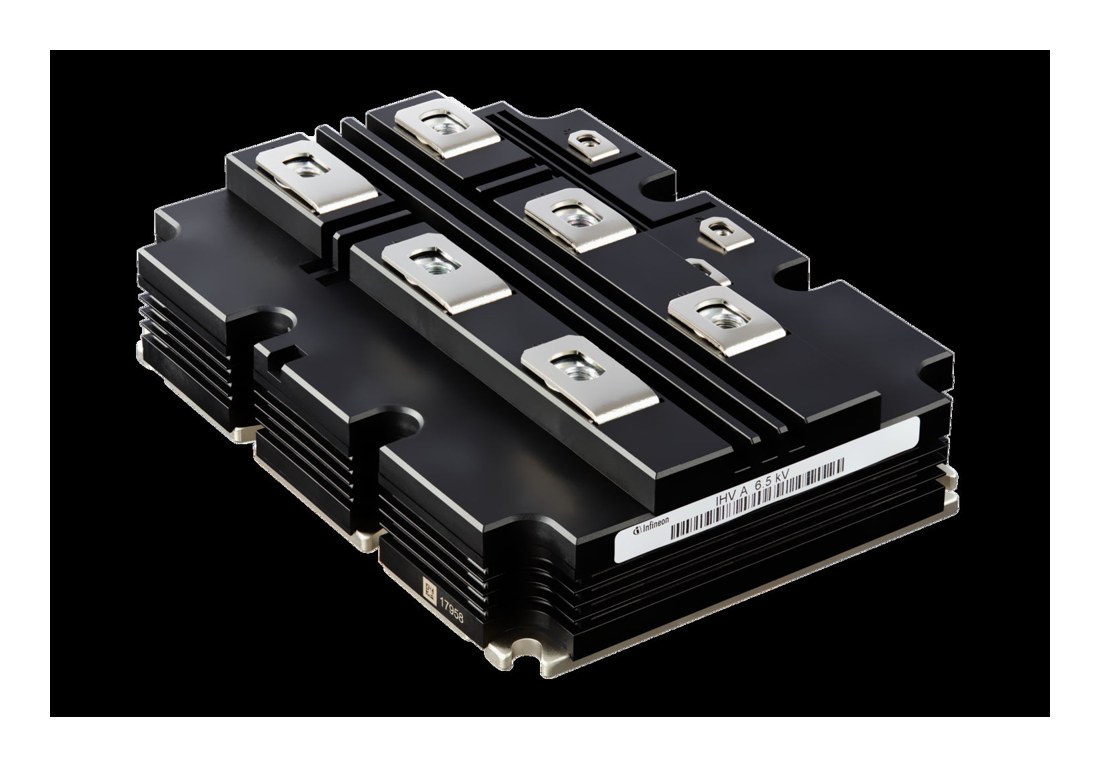

FZ1500R65KL7 Infineon IGBT Module

Representative image – actual product may differ

Availability and lead time are confirmed in our quote.

  • ✓ Quote within 24 hours
  • ✓ Original manufacturer parts, inspected before shipping
  • ✓ Credit cards and NET terms accepted

Or email sales@uscomponent.com or call 1-281-968-0718.

FZ1500R65KL7 Description

FZ1500R65KL7 is a 6500 V / 1500 A single switch IGBT module from Infineon Technologies. Typical applications: medium-voltage converters, Traction, Power transmission and distribution.

USComponent supplies FZ1500R65KL7 and other Infineon power modules. Request a quote for price and lead time - we reply within 24 hours.

Summary of Features

  • Extended storage temperature down to Tstg = -55 °C
  • Package with enhanced insulation of 10.4 kV AC 60 s
  • High creepage and clearance distances
  • Package with CTI > 600
  • AlSiC base plate for increased thermal cycling capability

Target Applications

Infineon FZ1500R65KL7 is used for Medium-voltage converters, Traction, Power transmission and distribution.

Key Specifications

FZ1500R65KL7 is a 6500 V / 1500 A single switch IGBT module from Infineon Technologies. Source: Infineon datasheet and product table.

ParameterValue
ManufacturerInfineon Technologies
Product typeIGBT module
ConfigurationSingle switch
Collector-emitter voltage (VCES)6500 V
Nominal collector current (IC nom)1500 A
DatasheetAvailable on this page (PDF)

Technical document (PDF)  |  Request a quote for FZ1500R65KL7 (reply within 24 hours)
