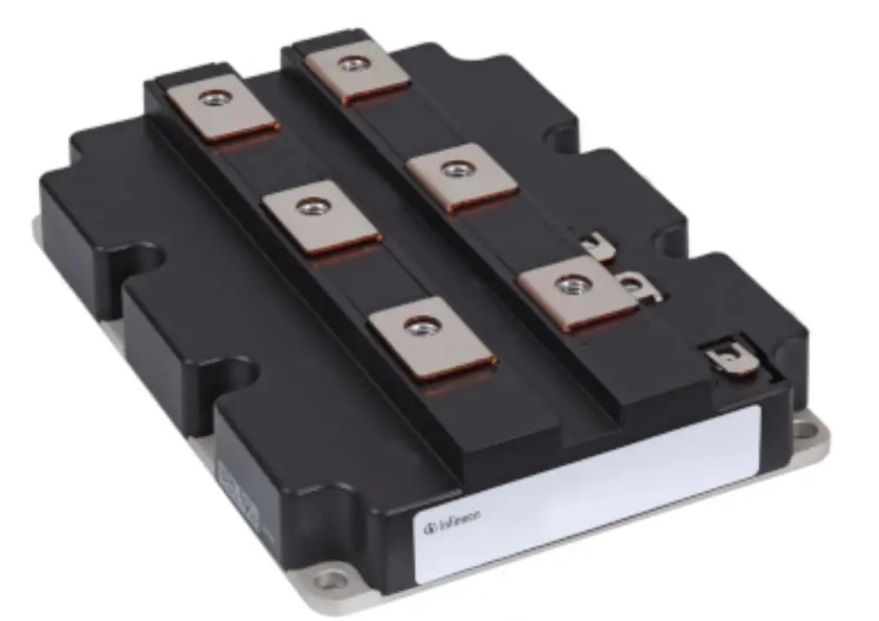

FZ1600R12KF4_S1 Infineon - IGBT Module

FZ1600R12KF4_S1 Description

The FZ1600R12KF4_S1 from Infineon Technologies is an IGBT module with a 1200 V / 1600 A rating. It is built with a single switch with its freewheeling diode (1-in-1). It is a common choice for inverter stages in AC drives, servo systems, welders and uninterruptible power supplies.

USComponent has sourced power semiconductors for maintenance teams and OEMs since 2001. For price and availability of the FZ1600R12KF4_S1, send us a request for quote. Please confirm the specifications against the manufacturer's datasheet before purchase.

Summary of Features

FZ1600R12KF4_S1 is a 1200V 1600A IGBT Module.

Target Applications

Infineon FZ1600R12KF4_S1 is used for inverters and AC motor drives, servo drives, UPS systems, welding machines, induction heating, solar and wind power converters and other high-power switching equipment.

Key Specifications

Manufacturer	Infineon Technologies (eupec)
Configuration	Single switch - IGBT with free-wheeling diode
VCES	1200 V
IC	1600 A (DC)
ICRM	3200 A (tp = 1 ms)
VCE(sat) typ.	2.7 V @ 1600 A
Isolation test voltage	2.5 kV RMS, 50 Hz, 1 min
Mounting torque	M6: 5 Nm (±15%)
Terminal torque	M4: 2 Nm; M8: 8 - 10 Nm
Weight	approx. 1500 g

Note: the S1 version is the same module as the standard FZ1600R12KF4, tested with a Siemens-specific grouping (Infineon). The datasheet on this page is the FZ1600R12KF4 datasheet.

Status: discontinued by Infineon (Product Discontinuation PD_099_15, last order date 2017-03-31). Infineon recommended replacement: FZ1800R12HE4_B9. Infineon notes that a replacement is not always a one-to-one drop-in: check the datasheet limits and gate drive conditions. USComponent can still source the original FZ1600R12KF4_S1.
