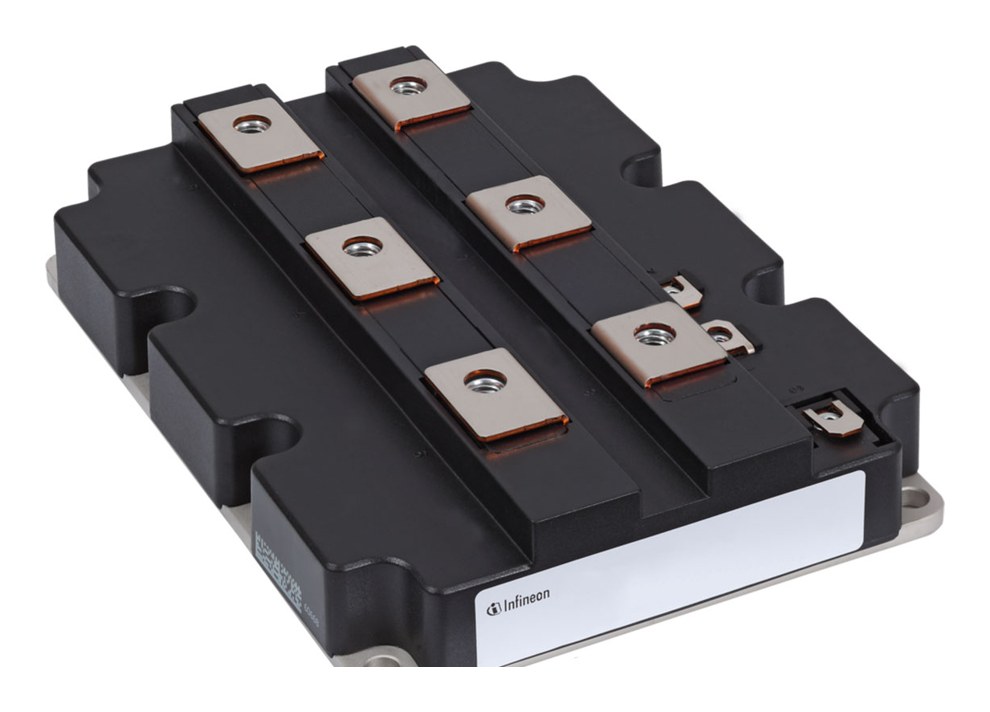

FZ1200R45HL3 Infineon - IGBT Module
Discontinued: Infineon recommended replacement: FZ1200R45HL4. We supply both the original FZ1200R45HL3 and the replacement - check the datasheets before switching.
FZ1200R45HL3 Description
FZ1200R45HL3 is a 4500 V, 1200 A Infineon IHV-B IGBT module (single switch), used for traction converters, medium-voltage drives and power transmission.
USComponent supplies FZ1200R45HL3 and other Infineon power modules. Request a quote for price and lead time - we reply within 24 hours.
Summary of Features
- 4,500 V / 1,200 A single-switch high-voltage IGBT module
- Trench/Fieldstop IGBT3 with Emitter Controlled 3 diode
- IHV-B housing, high isolation
- For traction and medium-voltage converters
Target Applications
Infineon FZ1200R45HL3 is used for high-power converters, medium-voltage converters and power transmission and distribution.
Key Specifications
FZ1200R45HL3 is a 4,500 V, 1,200 A Infineon IGBT module. Source: manufacturer datasheet.
| Parameter | Value |
|---|---|
| Product type | IGBT module |
| Configuration | Single switch (1-in-1) |
| Collector-emitter voltage (VCES) | 4,500 V |
| Collector current (IC nom) | 1,200 A |
| Technology | Trench/Fieldstop IGBT3 with Emitter Controlled 3 diode |
| Package | IHV-B |
Technical document (PDF) | Request a quote for FZ1200R45HL3 (reply within 24 hours)
Related Part Numbers
| FZ1200R45HL4 4500V, 1200A | FZ1000R33HL3 3300V, 1000A | FZ1500R33HL3 1500A 3300V | FZ1800R45HL4 4500V, 1800A |
| FZ1200R45HL3_S7 4500V, 1200A | FZ1200R33KL2 3300V, 1200A | FZ1200R33KF2C_S1 3300V, 1200A | FZ1200R45HL4_B8 4500V, 1200A |
| FZ1200R33KF2C_B6 3300V, 1200A | FZ1200R45HL4_S7 4500V, 1200A | FZ1200R33KF2C_B3_S2 3300V, 1200A | FZ1200R45KL3_B5 4500V, 1200A |
| FZ1200R33KF2C-b3-s5 3300V, 1200A | FZ1200R33KF2C 3300V, 1200A | FZ1200R33KF2 3300V, 2000A | FZ1200R33HE4D_B9 3300V, 1200A |
