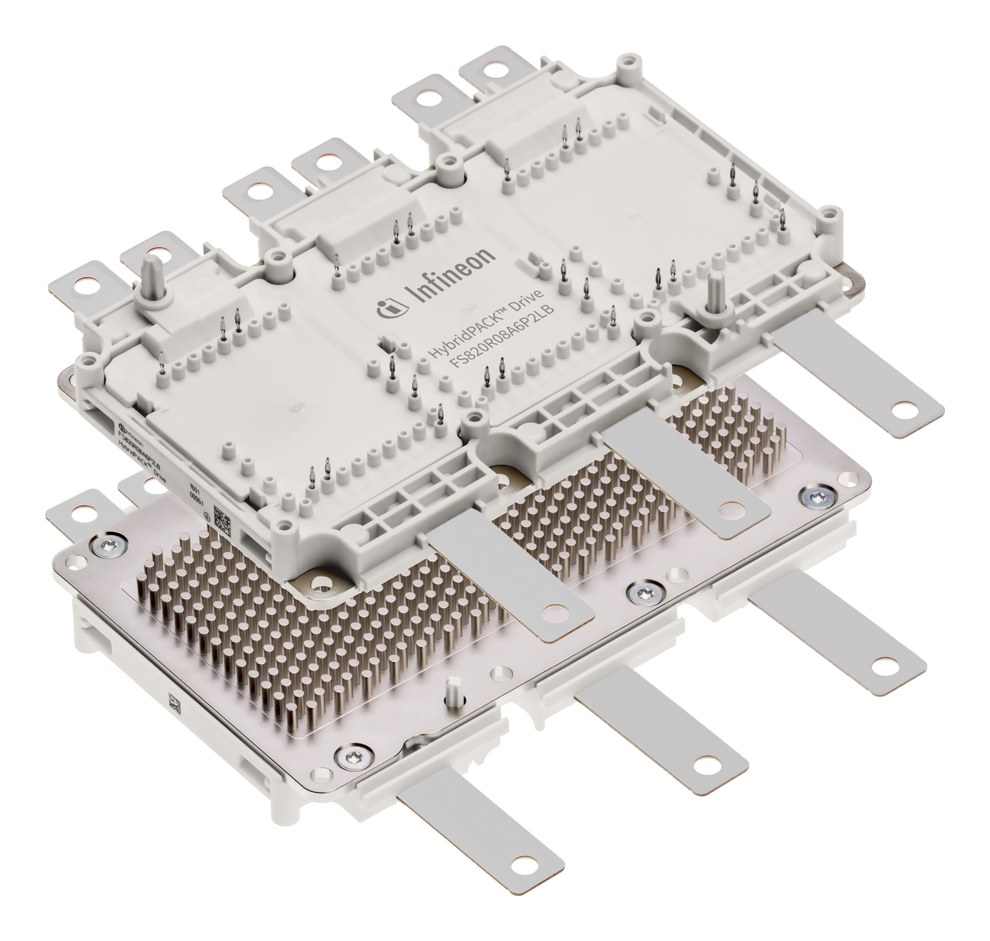

FS820R08A6P2LB Infineon - IGBT Module

FS820R08A6P2LB Description

FS820R08A6P2LB is a 750 V, 820 A Infineon HybridPACK Drive automotive IGBT module (six-pack), used for traction inverters for hybrid and electric vehicles.

USComponent supplies FS820R08A6P2LB and other Infineon power modules. Request a quote for price and lead time - we reply within 24 hours.

Summary of Features

Target Applications

Infineon FS820R08A6P2LB is used for Traction inverters for hybrid and electric vehicles.

Key Specifications

FS820R08A6P2LB is a 750 V, 820 A Infineon HybridPACK Drive automotive IGBT module. Source: manufacturer datasheet.

Parameter	Value
Product type	Automotive IGBT module
Configuration	Six-pack (3-phase inverter)
Collector-emitter voltage (VCES)	750 V
Implemented collector current (ICN)	820 A
Technology	EDT2 IGBT and diode
Package	HybridPACK Drive

Technical document (PDF)  |  Request a quote for FS820R08A6P2LB (reply within 24 hours)
