FS820R08A6P2 Infineon - IGBT Module

Category: IGBT Modules

Specifications: 750V, 820A

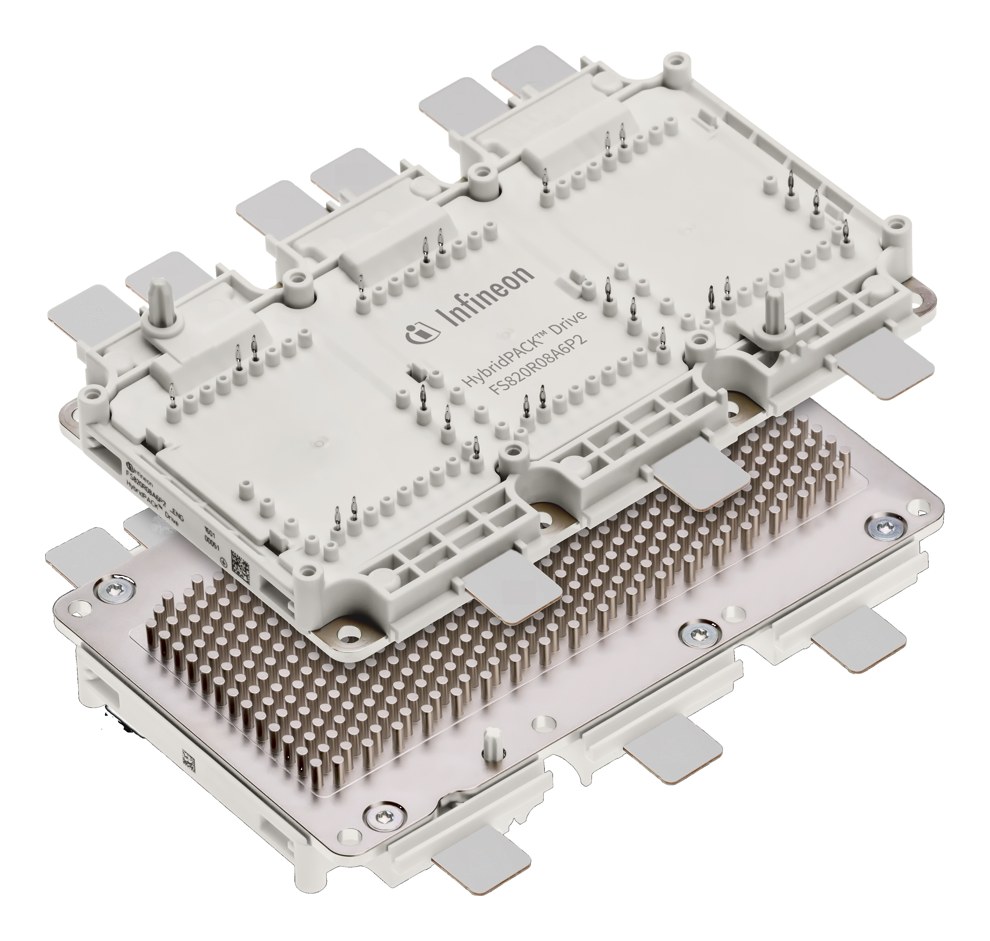

FS820R08A6P2 Infineon IGBT Module

Representative image – actual product may differ

Availability and lead time are confirmed in our quote.

  • ✓ Quote within 24 hours
  • ✓ Original manufacturer parts, inspected before shipping
  • ✓ Credit cards and NET terms accepted

Or email sales@uscomponent.com or call 1-281-968-0718.

FS820R08A6P2 Description

FS820R08A6P2 is a 750 V, 820 A Infineon HybridPACK Drive automotive IGBT module (six-pack), used for traction inverters for hybrid and electric vehicles.

USComponent supplies FS820R08A6P2 and other Infineon power modules. Request a quote for price and lead time - we reply within 24 hours.

Summary of Features

  • 750 V / 820 A automotive six-pack module
  • EDT2 IGBT and diode
  • HybridPACK Drive package for (H)EV main inverters
  • Operating junction temperature up to 175 °C

Target Applications

Infineon FS820R08A6P2 is used for Traction inverters for hybrid and electric vehicles.

Key Specifications

FS820R08A6P2 is a 750 V, 820 A Infineon HybridPACK Drive automotive IGBT module. Source: manufacturer datasheet.

ParameterValue
Product typeAutomotive IGBT module
ConfigurationSix-pack (3-phase inverter)
Collector-emitter voltage (VCES)750 V
Implemented collector current (ICN)820 A
TechnologyEDT2 IGBT and diode
PackageHybridPACK Drive

Technical document (PDF)  |  Request a quote for FS820R08A6P2 (reply within 24 hours)

Related Part Numbers

FS650R08A4P2
750V, 650A		FS820R08A6P2B
750V, 820A		FS820R08A6P2LB
750V, 820A		FS770R08A6P2B
750V, 770A
FS770R08A6P2LB
750V, 770A		FS950R08A6P2B
750V, 950A		FS950R08A6P2LB
750V, 950A		FS660R08A6P2FB
750V, 660A
FS800R07A2E3_B31
650V, 800A		FS800R07A2E3
650V, 800A		FS900R08A2P2_B31
750V, 900A		FS900R08A2P2_B32
750V, 900A
FS75R17W2E4P_B11
1700V, 75A		FS75R17KE3
75A/1700V		FS980R08A7F32B
750V, 980A		FS75R12W2T7_B11
1200V, 75A
