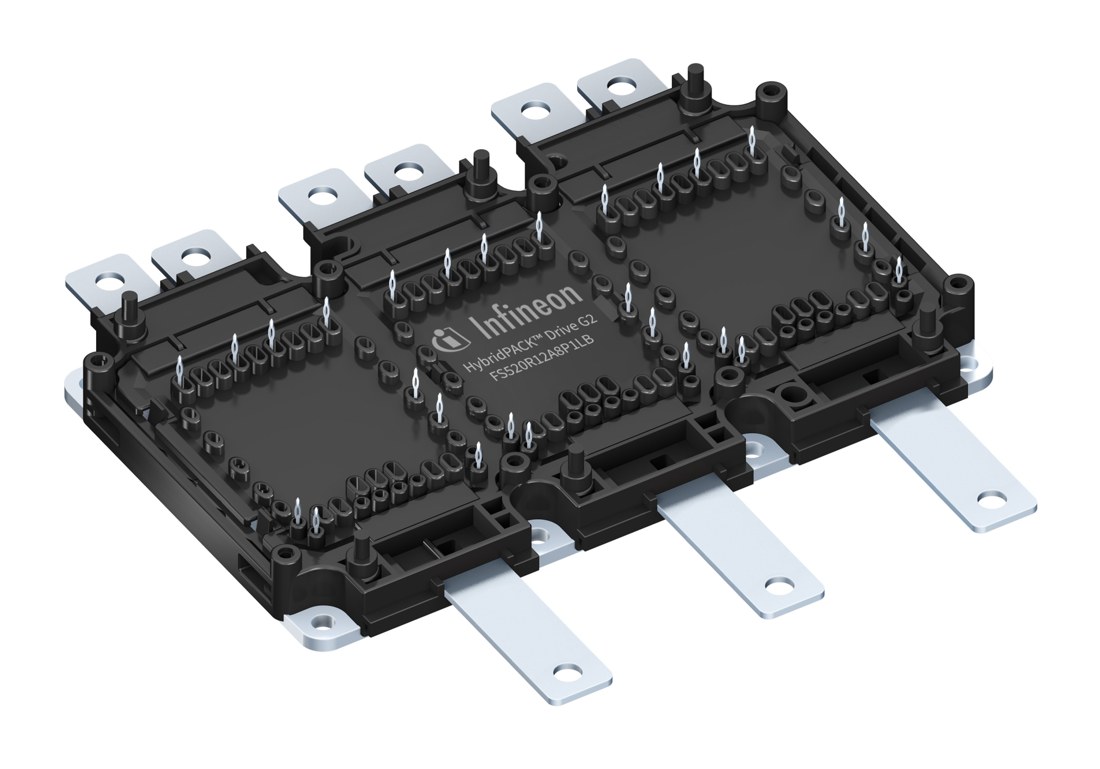

FS520R12A8P1LB Infineon - IGBT Module

FS520R12A8P1LB Description

FS520R12A8P1LB is a 1200 V / 520 A six-pack (3-phase bridge) IGBT module from Infineon Technologies. Typical applications: automotive applications, (Hybrid) electrical vehicles (H)EV, Motor drives, Commercial, construction and agricultural vehicles (CAV).

USComponent supplies FS520R12A8P1LB and other Infineon power modules. Request a quote for price and lead time - we reply within 24 hours.

Summary of Features

Target Applications

Infineon FS520R12A8P1LB is used for Automotive applications, (Hybrid) electrical vehicles (H)EV, Motor drives, Commercial, construction and agricultural vehicles (CAV).

Key Specifications

FS520R12A8P1LB is a 1200 V / 520 A six-pack (3-phase bridge) IGBT module from Infineon Technologies (HybridPACK Drive package). Source: Infineon datasheet and product table.

Parameter	Value
Manufacturer	Infineon Technologies
Product type	IGBT module
Configuration	Six-pack (3-phase bridge)
Collector-emitter voltage (VCES)	1200 V
Nominal collector current (IC nom)	520 A
Package	HybridPACK Drive
Datasheet	Available on this page (PDF)

Technical document (PDF)  |  Request a quote for FS520R12A8P1LB (reply within 24 hours)
