FS75R17W2E4P_B11 Infineon - IGBT Module

Also written as: FS75R17W2E4P-B11

Category: IGBT Modules

Specifications: 1700V, 75A

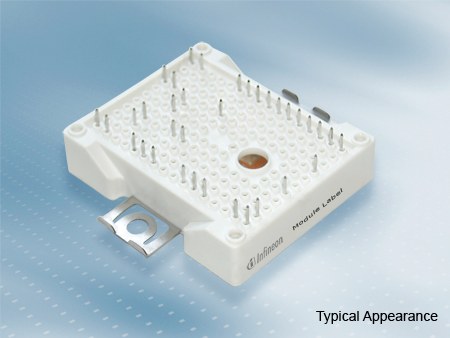

FS75R17W2E4P_B11 Infineon IGBT Module

Representative image – actual product may differ

Availability and lead time are confirmed in our quote.

  • ✓ Quote within 24 hours
  • ✓ Original manufacturer parts, inspected before shipping
  • ✓ Credit cards and NET terms accepted

Or email sales@uscomponent.com or call 1-281-968-0718.

FS75R17W2E4P_B11 Description

FS75R17W2E4P_B11 is a 1700 V / 75 A six-pack (3-phase bridge) IGBT module from Infineon Technologies. Typical applications: UPS systems, Air conditioning, Motor drives, Servo drives.

USComponent supplies FS75R17W2E4P_B11 and other Infineon power modules. Request a quote for price and lead time - we reply within 24 hours.

Summary of Features

  • Low switching losses
  • Al2O3 substrate with low thermal resistance
  • PressFIT contact technology
  • Rugged mounting due to integrated mounting clamps
  • Compact design

Target Applications

Infineon FS75R17W2E4P_B11 is used for UPS systems, Air conditioning, Motor drives, Servo drives.

Key Specifications

FS75R17W2E4P_B11 is a 1700 V / 75 A six-pack (3-phase bridge) IGBT module from Infineon Technologies (EasyPACK package). Source: Infineon datasheet and product table.

ParameterValue
ManufacturerInfineon Technologies
Product typeIGBT module
ConfigurationSix-pack (3-phase bridge)
Collector-emitter voltage (VCES)1700 V
Nominal collector current (IC nom)75 A
PackageEasyPACK
DatasheetAvailable on this page (PDF)

Technical document (PDF)  |  Request a quote for FS75R17W2E4P_B11 (reply within 24 hours)
