FS950R08A6P2LB Infineon - IGBT Module

Category: IGBT Modules

Specifications: 750V, 950A

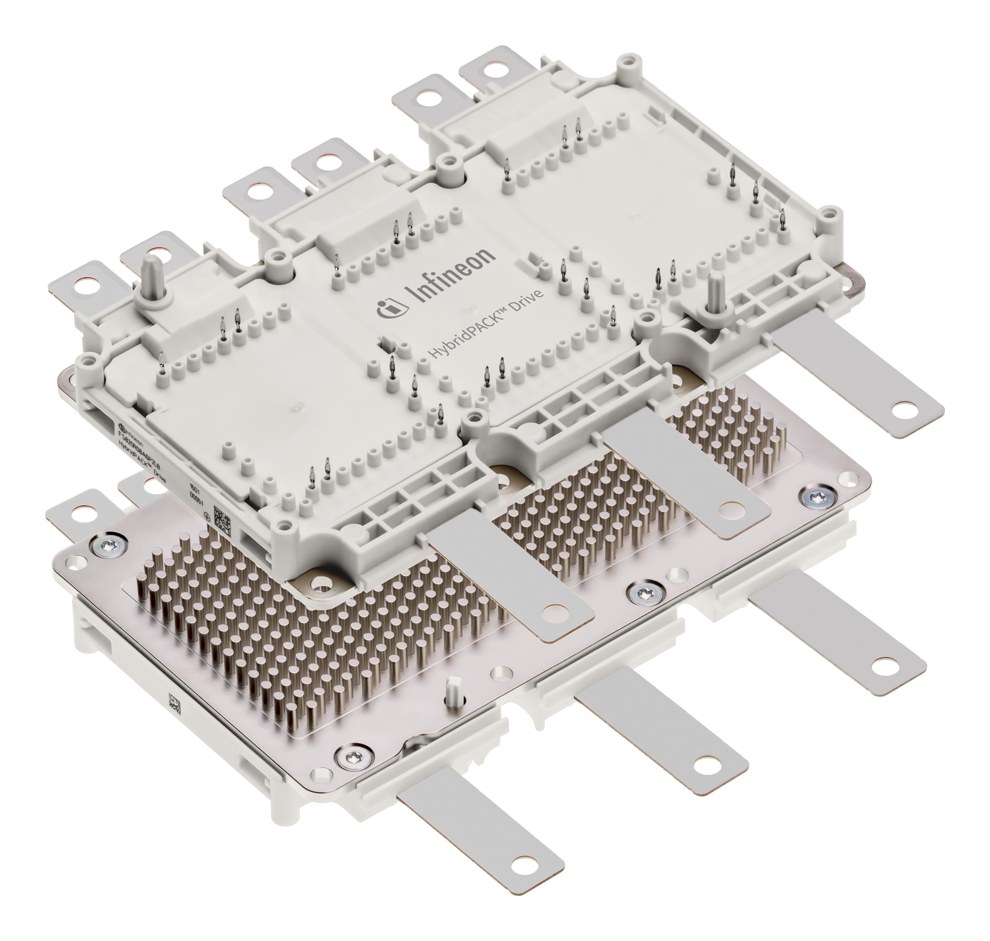

FS950R08A6P2LB Infineon IGBT Module

Representative image – actual product may differ

Availability and lead time are confirmed in our quote.

  • ✓ Quote within 24 hours
  • ✓ Original manufacturer parts, inspected before shipping
  • ✓ Credit cards and NET terms accepted

Or email sales@uscomponent.com or call 1-281-968-0718.

FS950R08A6P2LB Description

FS950R08A6P2LB is a 750 V, 950 A Infineon HybridPACK Drive automotive IGBT module (six-pack), used for traction inverters for hybrid and electric vehicles.

USComponent supplies FS950R08A6P2LB and other Infineon power modules. Request a quote for price and lead time - we reply within 24 hours.

Summary of Features

  • 750 V / 950 A automotive six-pack module
  • EDT2 IGBT and diode
  • HybridPACK Drive package for (H)EV main inverters
  • Operating junction temperature up to 175 °C

Target Applications

Infineon FS950R08A6P2LB is used for Traction inverters for hybrid and electric vehicles.

Key Specifications

FS950R08A6P2LB is a 750 V, 950 A Infineon HybridPACK Drive automotive IGBT module. Source: manufacturer datasheet.

ParameterValue
Product typeAutomotive IGBT module
ConfigurationSix-pack (3-phase inverter)
Collector-emitter voltage (VCES)750 V
Implemented collector current (ICN)950 A
TechnologyEDT2 IGBT and diode
PackageHybridPACK Drive

Technical document (PDF)  |  Request a quote for FS950R08A6P2LB (reply within 24 hours)
