FS800R07A2E3 Infineon - IGBT Module

FS800R07A2E3 Description

FS800R07A2E3 is a 650 V, 800 A IGBT module made by Infineon Technologies. It is built with six switches arranged as a three-phase bridge (6-in-1). You'll typically find it in variable-frequency drives, servo amplifiers, UPS systems, welding machines and solar or wind inverters.

USComponent has been supplying power semiconductors since 2001, including discontinued and hard-to-find part numbers. Send us an RFQ for the FS800R07A2E3 and we will reply with price, condition and lead time. Please check the manufacturer's datasheet to confirm ratings, package and pin-out before you order.

Summary of Features

Target Applications

Infineon FS800R07A2E3 is used for inverters and AC motor drives, servo drives, UPS systems, welding machines, induction heating, solar and wind power converters and other high-power switching equipment.

Key Specifications

FS800R07A2E3 is a 650 V, 800 A IGBT module, six-pack configuration. Source: manufacturer datasheet.

Parameter	Value
Product type	IGBT module
Configuration	Six-pack
Collector-emitter voltage (VCES)	650 V
Collector current (IC)	800 A

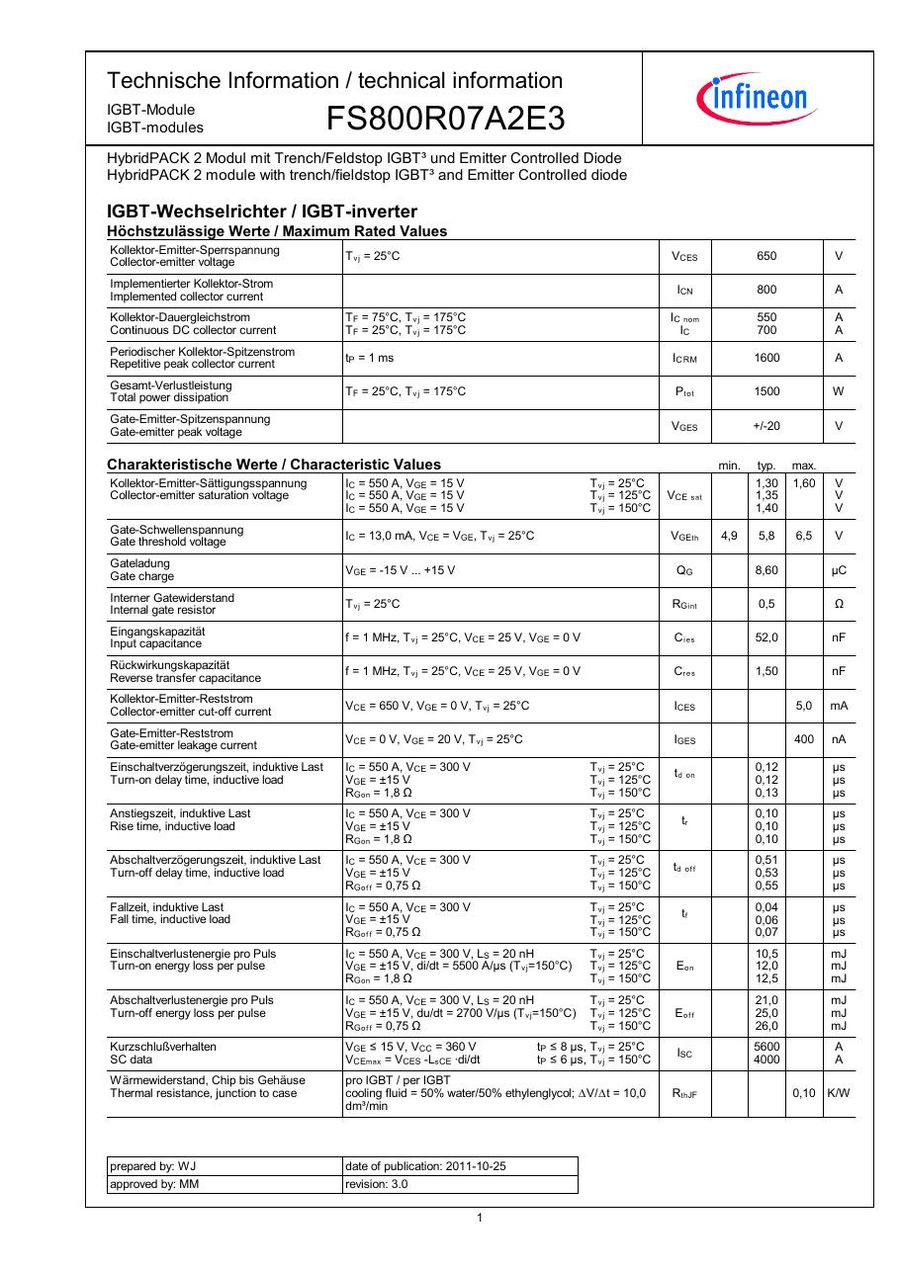

Datasheet	Available on this page (PDF)

Technical document (PDF)  |  Request a quote for FS800R07A2E3 (reply within 24 hours)
