FS980R08A7F32B Infineon - IGBT Module

Category: IGBT Modules

Specifications: 750V, 980A

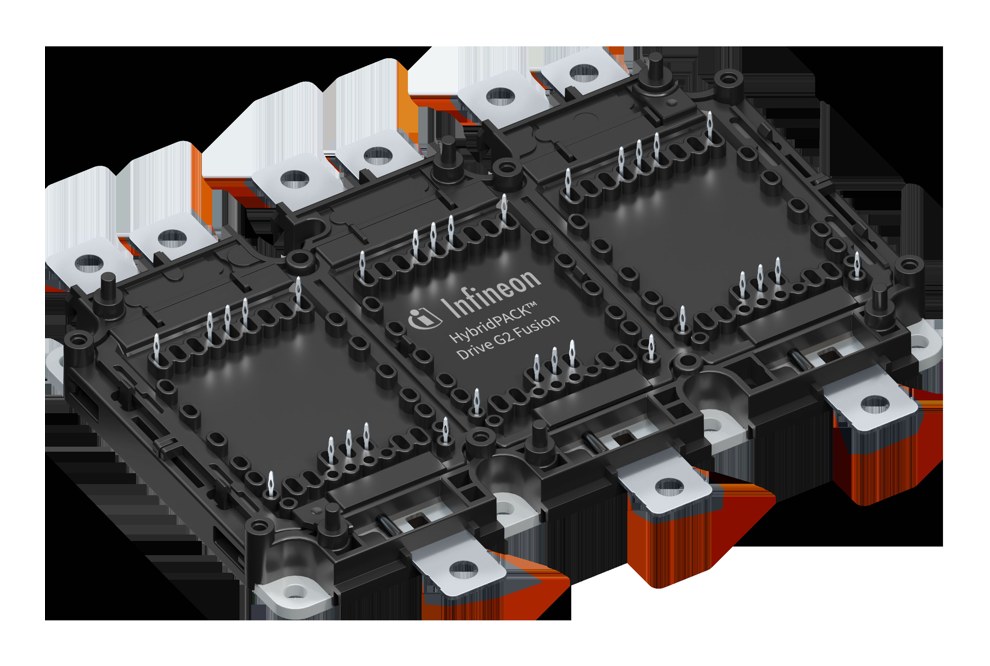

FS980R08A7F32B Infineon IGBT Module

Representative image – actual product may differ

Availability and lead time are confirmed in our quote.

  • ✓ Quote within 24 hours
  • ✓ Original manufacturer parts, inspected before shipping
  • ✓ Credit cards and NET terms accepted

Or email sales@uscomponent.com or call 1-281-968-0718.

FS980R08A7F32B Description

FS980R08A7F32B is a 750 V, 980 A Infineon HybridPACK Drive G2 automotive Si/SiC module (six-pack), used for traction inverters for hybrid and electric vehicles.

USComponent supplies FS980R08A7F32B and other Infineon power modules. Request a quote for price and lead time - we reply within 24 hours.

Summary of Features

  • Blocking voltage 750 V
  • Implemented current 980 A / Repetitive peak current 1960 A
  • Fusion Switch – EDT3 IGBT/Diode & CoolSiC™ Gen 2 MOSFET
  • High I²t robustness
  • Low conduction losses
  • Low switching losses
  • Low inductive design
  • Integrated on-chip temperature sensor
  • 4.25 kV DC 1 second insulation
  • High creepage and clearance distances

Target Applications

Infineon FS980R08A7F32B is used for automotive applications, motor drives and commercial, construction and agricultural vehicles (CAV).

Key Specifications

FS980R08A7F32B is a 750 V, 980 A Infineon HybridPACK Drive G2 automotive Si/SiC module. Source: manufacturer datasheet.

ParameterValue
Product typeAutomotive Si/SiC module
ConfigurationSix-pack (3-phase inverter)
Collector-emitter voltage (VCES)750 V
Implemented collector current (ICN)980 A
TechnologySi/SiC Fusion switch (EDT3 IGBT + CoolSiC Gen2 MOSFET)
PackageHybridPACK Drive G2

Technical document (PDF)  |  Request a quote for FS980R08A7F32B (reply within 24 hours)
