FS75R12W2T7_B11 Infineon - IGBT Module

Also written as: FS75R12W2T7-B11

Category: IGBT Modules

Specifications: 1200V, 75A

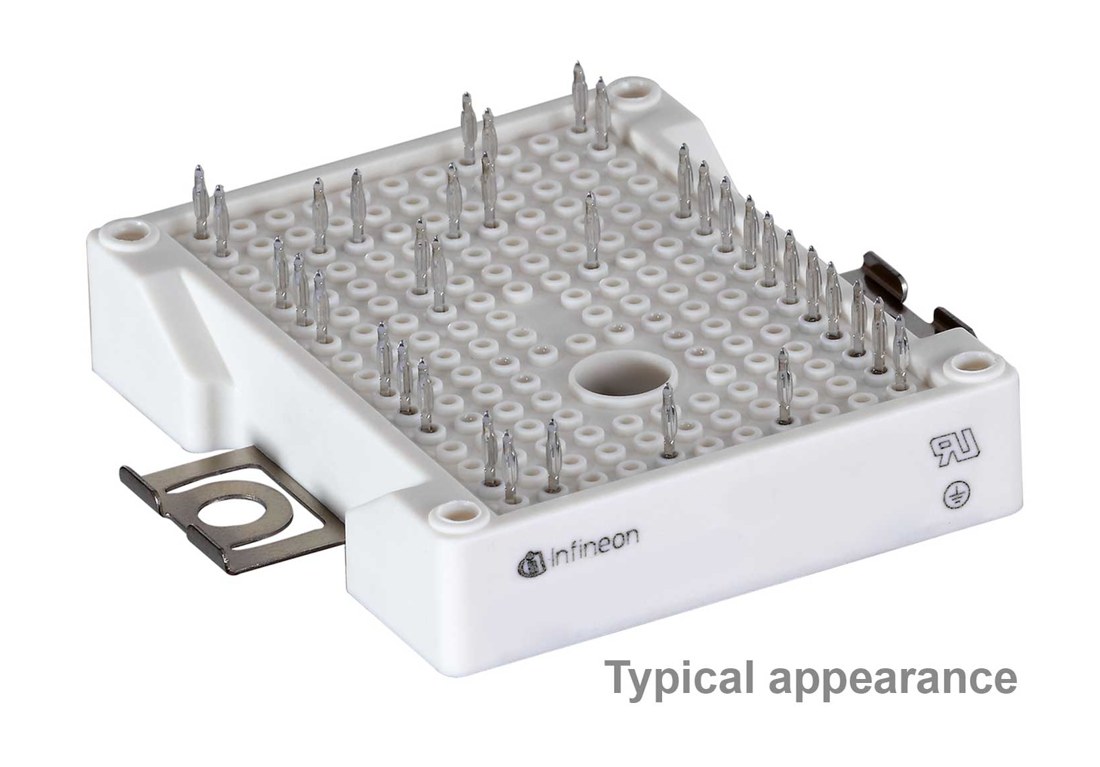

FS75R12W2T7_B11 Infineon IGBT Module

Representative image – actual product may differ

We beat competitor's price with faster delivery.

For 6 pieces or more, submit your inquiry here, email to sales@uscomponent.com or call 1-281-968-0718

FS75R12W2T7_B11 Description

FS75R12W2T7_B11 is a 1200 V / 75 A six-pack (3-phase bridge) IGBT module from Infineon Technologies. Typical applications: motor drives, Air conditioning, Auxiliary inverters, Servo drives, UPS systems.

USComponent supplies FS75R12W2T7_B11 and other Infineon power modules. Request a quote for price and lead time - we reply within 24 hours.

Summary of Features

  • Overload operation up to 175°C
  • TRENCHSTOP IGBT7
  • High power density
  • Compact design

Target Applications

Infineon FS75R12W2T7_B11 is used for Motor drives, Air conditioning, Auxiliary inverters, Servo drives, UPS systems.

Key Specifications

FS75R12W2T7_B11 is a 1200 V / 75 A six-pack (3-phase bridge) IGBT module from Infineon Technologies (EasyPACK package). Source: Infineon datasheet and product table.

ParameterValue
ManufacturerInfineon Technologies
Product typeIGBT module
ConfigurationSix-pack (3-phase bridge)
Collector-emitter voltage (VCES)1200 V
Nominal collector current (IC nom)75 A
PackageEasyPACK
DatasheetAvailable on this page (PDF)

Technical document (PDF)  |  Request a quote for FS75R12W2T7_B11 (reply within 24 hours)

Related Part Numbers

FS75R12KE3FS75R12KE3-B3FS75R12KE3-B9FS75R12KE3G
FS75R12KEGFS75R12KS4FS75R12KT3FS75R12KT3G
FS75R12KT4FS75R12KT4_B11FS75R12KT4_B15FS75R12N2T7_B15
FS75R12W2T4FS75R12W2T7FS75R17KE3FS75R06KE3
