FS50R12W1T7_B11 Infineon - IGBT Module

Also written as: FS50R12W1T7-B11

Category: IGBT Modules

Specifications: 1200V, 50A

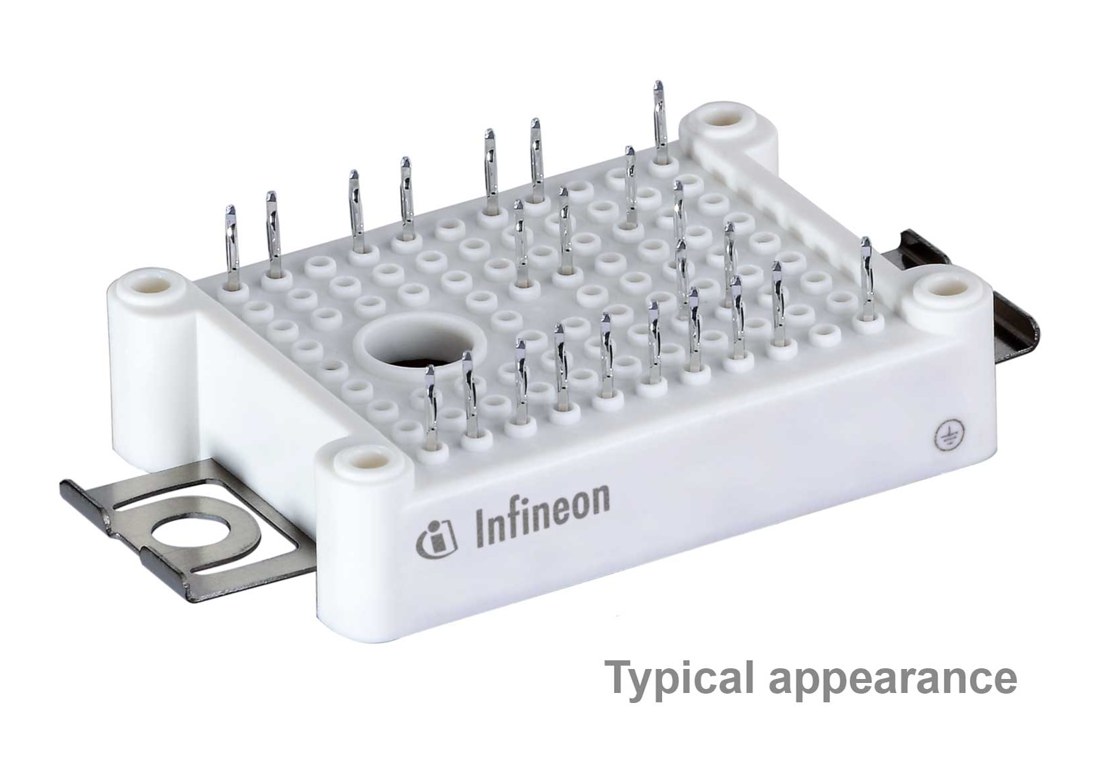

FS50R12W1T7_B11 Infineon IGBT Module

Representative image – actual product may differ

We beat competitor's price with faster delivery.

For 6 pieces or more, submit your inquiry here, email to sales@uscomponent.com or call 1-281-968-0718

FS50R12W1T7_B11 Description

FS50R12W1T7_B11 is a 1200 V / 50 A six-pack (3-phase bridge) IGBT module from Infineon Technologies. Typical applications: air conditioning, Auxiliary inverters, Motor drives, Servo drives, UPS systems.

USComponent supplies FS50R12W1T7_B11 and other Infineon power modules. Request a quote for price and lead time - we reply within 24 hours.

Summary of Features

  • TRENCHSTOP IGBT7
  • Overload operation up to 175°C
  • PressFIT contact technology
  • High power density

Target Applications

Infineon FS50R12W1T7_B11 is used for Air conditioning, Auxiliary inverters, Motor drives, Servo drives, UPS systems.

Key Specifications

FS50R12W1T7_B11 is a 1200 V / 50 A six-pack (3-phase bridge) IGBT module from Infineon Technologies (EasyPACK package). Source: Infineon datasheet and product table.

ParameterValue
ManufacturerInfineon Technologies
Product typeIGBT module
ConfigurationSix-pack (3-phase bridge)
Collector-emitter voltage (VCES)1200 V
Nominal collector current (IC nom)50 A
PackageEasyPACK
DatasheetAvailable on this page (PDF)

Technical document (PDF)  |  Request a quote for FS50R12W1T7_B11 (reply within 24 hours)
