FS1150R08A8P3LMC Infineon - IGBT Module

Category: IGBT Modules

Specifications: 750V, 1150A

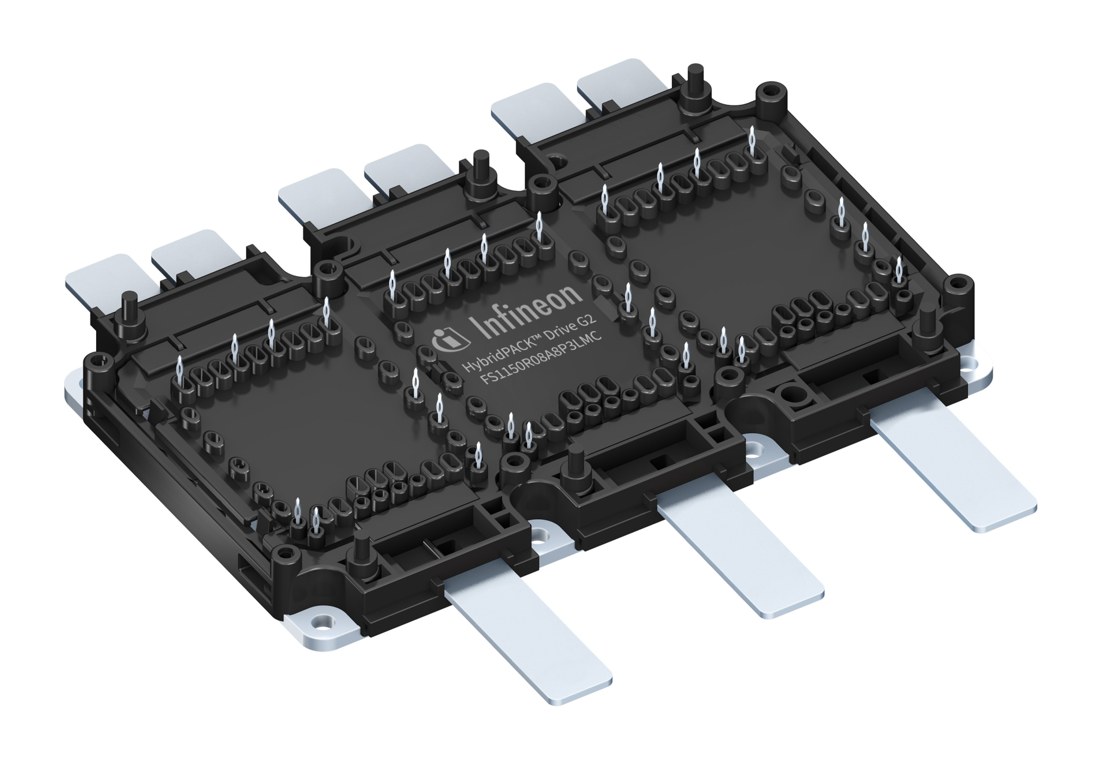

FS1150R08A8P3LMC Infineon IGBT Module

Representative image – actual product may differ

We beat competitor's price with faster delivery.

For 6 pieces or more, submit your inquiry here, email to sales@uscomponent.com or call 1-281-968-0718

FS1150R08A8P3LMC Description

FS1150R08A8P3LMC is a 750 V / 1150 A six-pack (3-phase bridge) IGBT module from Infineon Technologies. Typical applications: automotive applications, (Hybrid) electrical vehicles (H)EV.

USComponent supplies FS1150R08A8P3LMC and other Infineon power modules. Request a quote for price and lead time - we reply within 24 hours.

Summary of Features

  • Blocking voltage 750 V
  • Low switching losses
  • Low Qg and Crss
  • Low inductive design

Target Applications

Infineon FS1150R08A8P3LMC is used for Automotive applications, (Hybrid) electrical vehicles (H)EV.

Key Specifications

FS1150R08A8P3LMC is a 750 V / 1150 A six-pack (3-phase bridge) IGBT module from Infineon Technologies (HybridPACK Drive package). Source: Infineon datasheet and product table.

ParameterValue
ManufacturerInfineon Technologies
Product typeIGBT module
ConfigurationSix-pack (3-phase bridge)
Collector-emitter voltage (VCES)750 V
Nominal collector current (IC nom)1150 A
PackageHybridPACK Drive
DatasheetAvailable on this page (PDF)

Technical document (PDF)  |  Request a quote for FS1150R08A8P3LMC (reply within 24 hours)
