FS50R12W2T7 Infineon - IGBT Module

Category: IGBT Modules

Specifications: 1200V, 50A

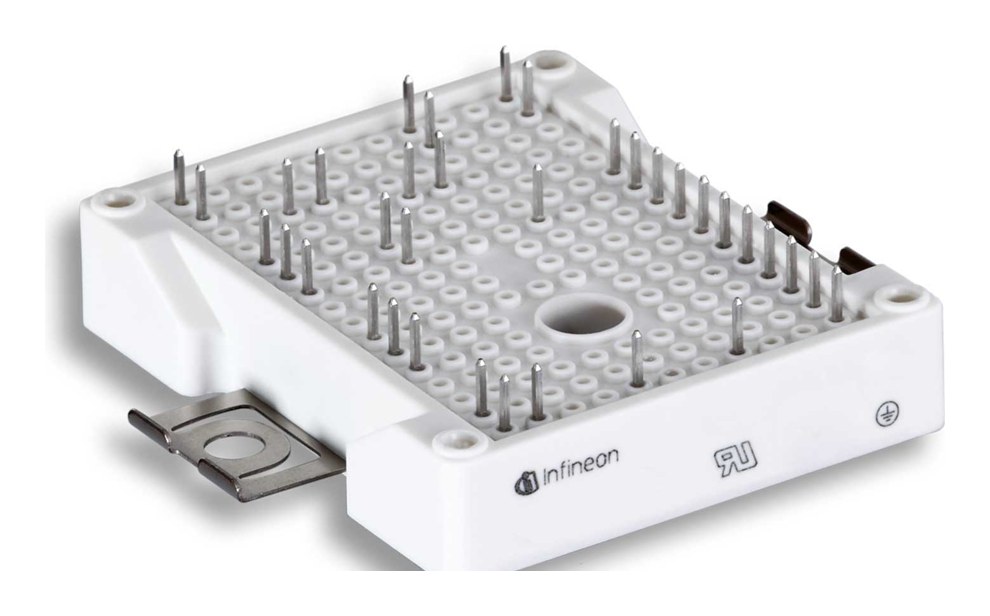

FS50R12W2T7 Infineon IGBT Module

Representative image – actual product may differ

We beat competitor's price with faster delivery.

For 6 pieces or more, submit your inquiry here, email to sales@uscomponent.com or call 1-281-968-0718

FS50R12W2T7 Description

FS50R12W2T7 is a 1200 V, 50 A Infineon EasyPACK 2B IGBT module (six-pack), used for motor drives, servo drives and auxiliary inverters.

USComponent supplies FS50R12W2T7 and other Infineon power modules. Request a quote for price and lead time - we reply within 24 hours.

Summary of Features

  • 1,200 V / 50 A six-pack IGBT module
  • TRENCHSTOP IGBT7, overload operation up to 175 °C
  • EasyPACK housing, compact design, 2.5 kV insulation
  • Integrated NTC temperature sensor

Target Applications

Infineon FS50R12W2T7 is used for Motor drives, servo drives and auxiliary inverters.

Key Specifications

FS50R12W2T7 is a 1,200 V, 50 A Infineon IGBT module. Source: manufacturer datasheet.

ParameterValue
Product typeIGBT module
ConfigurationSix-pack (3-phase inverter)
Collector-emitter voltage (VCES)1,200 V
Collector current (IC nom)50 A
TechnologyTRENCHSTOP IGBT7 with Emitter Controlled 7 diode
PackageEasyPACK 2B

Technical document (PDF)  |  Request a quote for FS50R12W2T7 (reply within 24 hours)
