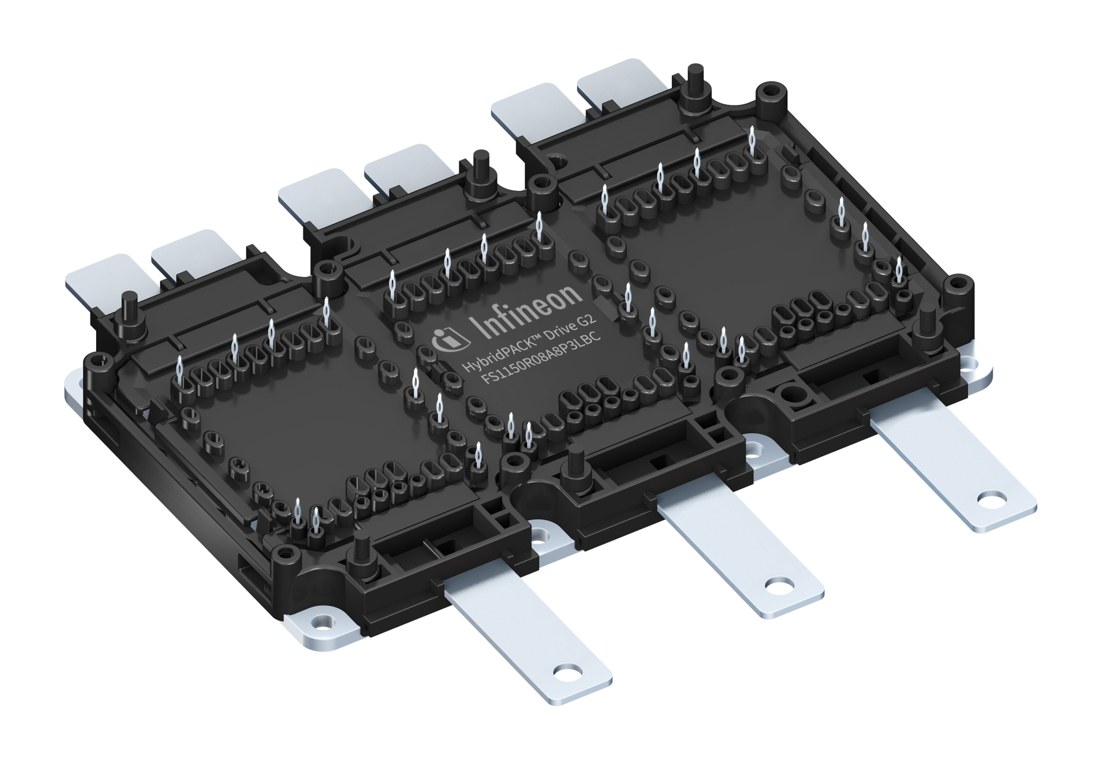

FS1150R08A8P3LBC Infineon - IGBT Module

FS1150R08A8P3LBC Description

FS1150R08A8P3LBC is a 750 V / 1150 A six-pack (3-phase bridge) IGBT module from Infineon Technologies. Typical applications: automotive applications, (Hybrid) electrical vehicles (H)EV.

USComponent supplies FS1150R08A8P3LBC and other Infineon power modules. Request a quote for price and lead time - we reply within 24 hours.

Summary of Features

Target Applications

Infineon FS1150R08A8P3LBC is used for Automotive applications, (Hybrid) electrical vehicles (H)EV.

Key Specifications

FS1150R08A8P3LBC is a 750 V / 1150 A six-pack (3-phase bridge) IGBT module from Infineon Technologies (HybridPACK Drive package). Source: Infineon datasheet and product table.

Parameter	Value
Manufacturer	Infineon Technologies
Product type	IGBT module
Configuration	Six-pack (3-phase bridge)
Collector-emitter voltage (VCES)	750 V
Nominal collector current (IC nom)	1150 A
Package	HybridPACK Drive
Datasheet	Available on this page (PDF)
