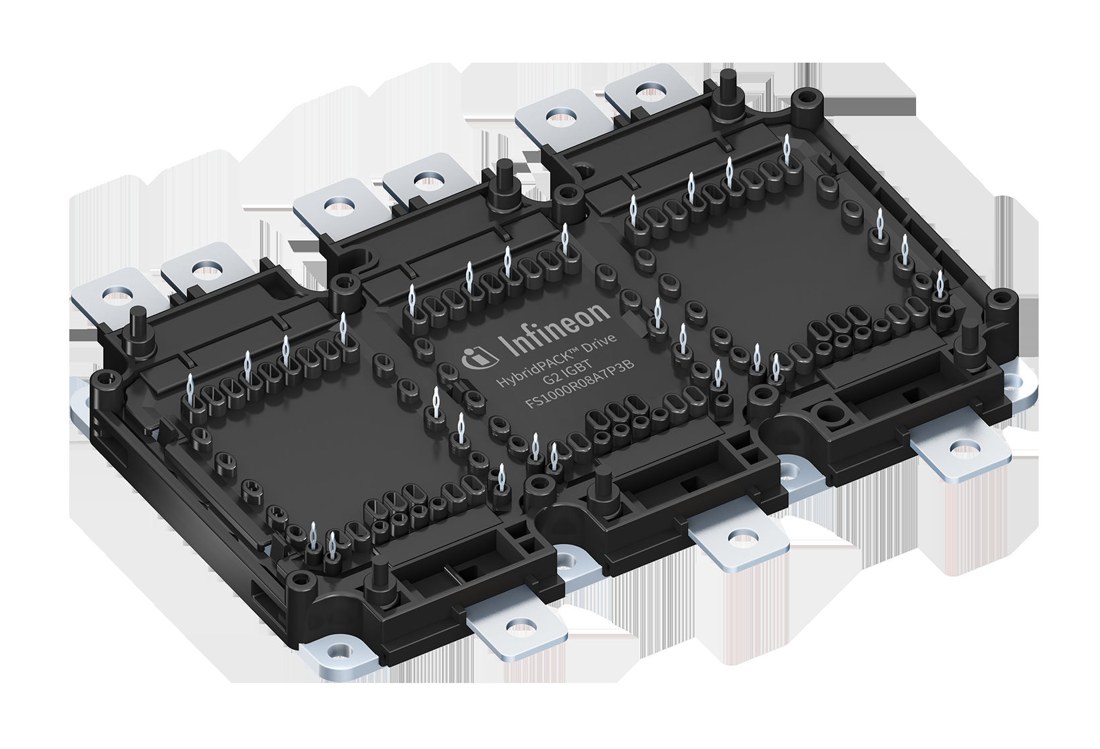

FS1000R08A7P3B Infineon - IGBT Module

FS1000R08A7P3B Description

FS1000R08A7P3B is a 750 V / 1000 A six-pack (3-phase bridge) IGBT module from Infineon Technologies. Typical applications: automotive applications, (Hybrid) electrical vehicles (H)EV.

USComponent supplies FS1000R08A7P3B and other Infineon power modules. Request a quote for price and lead time - we reply within 24 hours.

Summary of Features

Target Applications

Infineon FS1000R08A7P3B is used for Automotive applications, (Hybrid) electrical vehicles (H)EV.

Key Specifications

FS1000R08A7P3B is a 750 V / 1000 A six-pack (3-phase bridge) IGBT module from Infineon Technologies (HybridPACK Drive package). Source: Infineon datasheet and product table.

Parameter	Value
Manufacturer	Infineon Technologies
Product type	IGBT module
Configuration	Six-pack (3-phase bridge)
Collector-emitter voltage (VCES)	750 V
Nominal collector current (IC nom)	1000 A
Package	HybridPACK Drive
Datasheet	Available on this page (PDF)

Technical document (PDF)  |  Request a quote for FS1000R08A7P3B (reply within 24 hours)
