FS150R06KE3 Infineon - IGBT

FS150R06KE3 Description

Rated at 600 V and 150 A, the Infineon Technologies FS150R06KE3 is an IGBT module. The module contains six switches arranged as a three-phase bridge (6-in-1). You'll typically find it in variable-frequency drives, servo amplifiers, UPS systems, welding machines and solar or wind inverters. Many of these parts are still in service in machines built years ago, and a direct replacement is often the fastest way to get one running again.

Looking for a replacement FS150R06KE3? USComponent can quote new and hard-to-find stock and ships worldwide. Request a quote for pricing and lead time, and double-check the datasheet to make sure it fits your application.

Summary of Features

Target Applications

Infineon FS150R06KE3 is used for inverters and AC motor drives, servo drives, UPS systems, welding machines, induction heating, solar and wind power converters and other high-power switching equipment.

Key Specifications

FS150R06KE3 is a 600 V, 150 A IGBT module, six-pack configuration. Source: manufacturer datasheet.

Parameter	Value
Product type	IGBT module
Configuration	Six-pack
Collector-emitter voltage (VCES)	600 V
Collector current (IC)	150 A

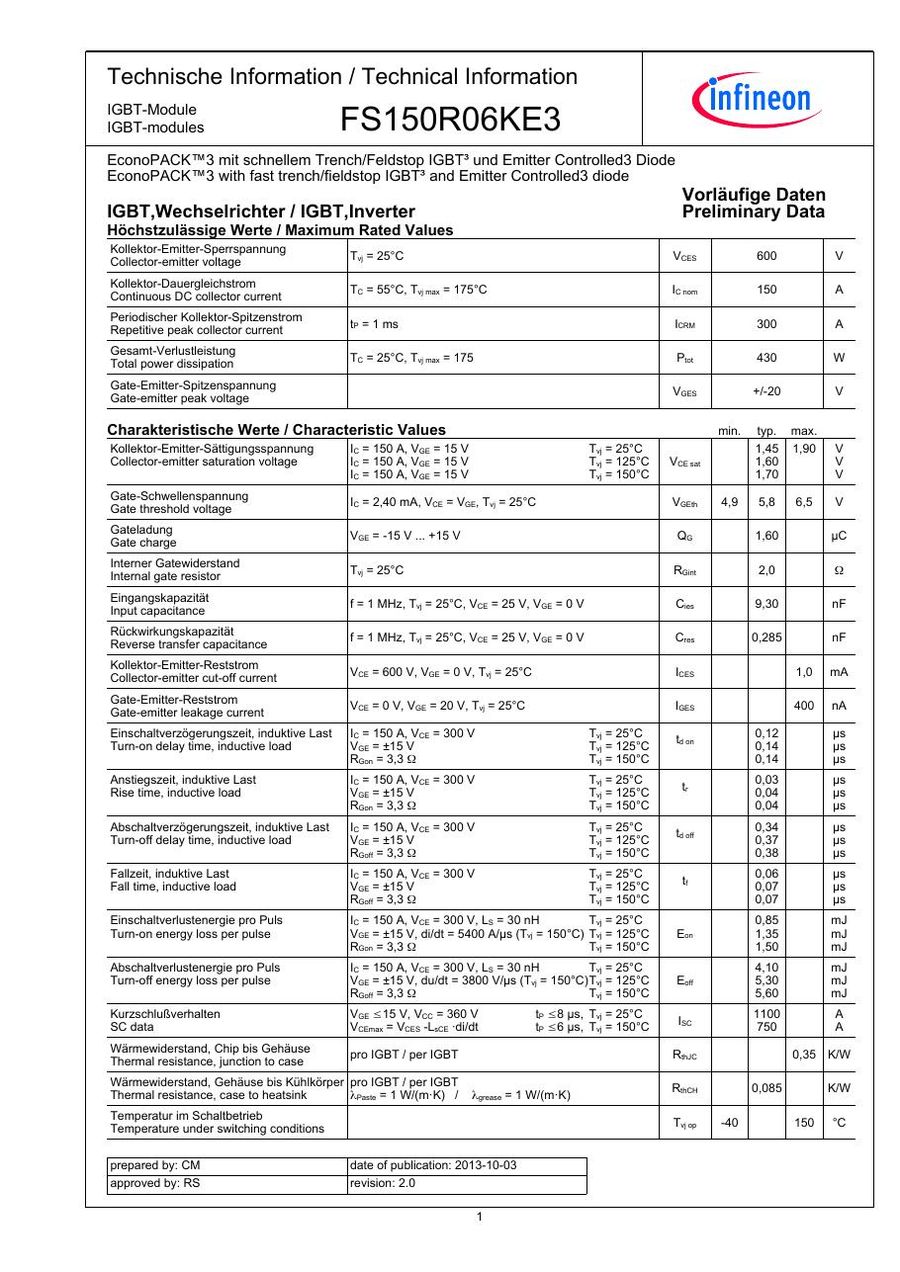

Datasheet	Available on this page (PDF)

Technical document (PDF)  |  Request a quote for FS150R06KE3 (reply within 24 hours)
