FP50R12N2T7P_B11 Infineon - IGBT Module

Also written as: FP50R12N2T7P-B11

Category: IGBT Modules

Specifications: 1200V, 50A

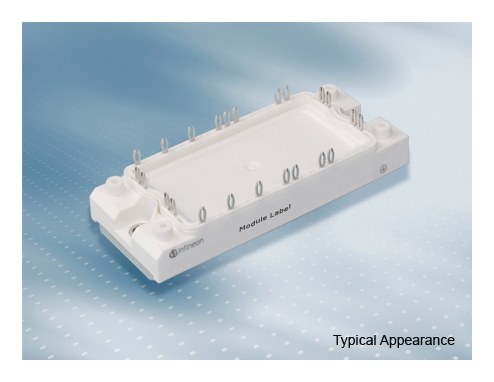

FP50R12N2T7P_B11 Infineon IGBT Module

Representative image – actual product may differ

We beat competitor's price with faster delivery.

For 6 pieces or more, submit your inquiry here, email to sales@uscomponent.com or call 1-281-968-0718

FP50R12N2T7P_B11 Description

FP50R12N2T7P_B11 is a 1200 V / 50 A PIM (rectifier + brake + inverter) IGBT module from Infineon Technologies. Typical applications: auxiliary inverters, Motor drives, Servo drives.

USComponent supplies FP50R12N2T7P_B11 and other Infineon power modules. Request a quote for price and lead time - we reply within 24 hours.

Summary of Features

  • TRENCHSTOP IGBT7
  • Overload operation up to 175°C
  • High power and thermal cycling capability
  • Integrated NTC temperature sensor
  • Copper base plate

Target Applications

Infineon FP50R12N2T7P_B11 is used for Auxiliary inverters, Motor drives, Servo drives.

Key Specifications

FP50R12N2T7P_B11 is a 1200 V / 50 A PIM (rectifier + brake + inverter) IGBT module from Infineon Technologies (EconoPIM 2 package). Source: Infineon datasheet and product table.

ParameterValue
ManufacturerInfineon Technologies
Product typeIGBT module
ConfigurationPIM (rectifier + brake + inverter)
Collector-emitter voltage (VCES)1200 V
Nominal collector current (IC nom)50 A
PackageEconoPIM 2
DatasheetAvailable on this page (PDF)

Technical document (PDF)  |  Request a quote for FP50R12N2T7P_B11 (reply within 24 hours)

Related Part Numbers

FP50R12KE3FP50R12KS4CFP50R12KT3FP50R12KT4
FP50R12KT4GFP50R12KT4G_B15FP50R12KT4_B11FP50R12N2T7
FP50R12N2T7PFP50R12N2T7_B11FP50R12N2T7_B19FP50R12W2T7
FP50R12W2T7PFP50R12W2T7_B11FP50R12W3T7_B11FP50R06KE3
