FP50R12KT4P Infineon - IGBT Module

Category: IGBT Modules

Specifications: 1200V, 50A

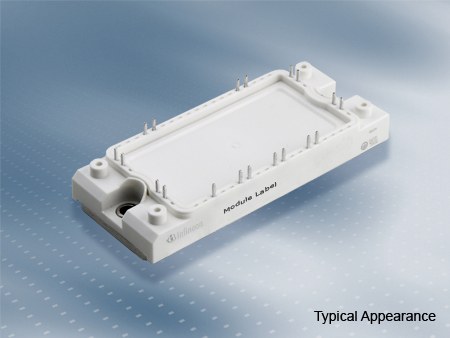

FP50R12KT4P Infineon IGBT Module

Representative image – actual product may differ

Availability and lead time are confirmed in our quote.

  • ✓ Quote within 24 hours
  • ✓ Original manufacturer parts, inspected before shipping
  • ✓ Credit cards and NET terms accepted

Or email sales@uscomponent.com or call 1-281-968-0718.

FP50R12KT4P Description

FP50R12KT4P is a 1200 V / 50 A PIM (rectifier + brake + inverter) IGBT module from Infineon Technologies. Typical applications: motor drives, Servo drives.

USComponent supplies FP50R12KT4P and other Infineon power modules. Request a quote for price and lead time - we reply within 24 hours.

Summary of Features

  • Extended operating temperature Tvj op
  • Low switching losses
  • Trench IGBT 4
  • High power and thermal cycling capability
  • Integrated NTC temperature sensor
  • Isolated base plate
  • Copper base plate
  • Solder contact technology

Target Applications

Infineon FP50R12KT4P is used for Motor drives, Servo drives.

Key Specifications

FP50R12KT4P is a 1200 V / 50 A PIM (rectifier + brake + inverter) IGBT module from Infineon Technologies (EconoPIM 2 package). Source: Infineon datasheet and product table.

ParameterValue
ManufacturerInfineon Technologies
Product typeIGBT module
ConfigurationPIM (rectifier + brake + inverter)
Collector-emitter voltage (VCES)1200 V
Nominal collector current (IC nom)50 A
PackageEconoPIM 2
DatasheetAvailable on this page (PDF)

Technical document (PDF)  |  Request a quote for FP50R12KT4P (reply within 24 hours)

Related Part Numbers

FP35R12KT4P
1200V, 35A		FP75R12KT4P
1200V, 75A		FP150R12KT4P
1200V, 150A		FP50R12KT4G
1200V, 50A
FP50R12KT4
1200V, 50A		FP50R12KT3
1200V, 50A		FP35R12KT4
1200V, 35A		FP75R12KT4
1200V, 75A
FP50R12KT4_B11
1200V, 50A		FP50R12KT4G_B15
1200V, 50A		FP50R12N2T7
1200V, 50A		FP50R12N2T7P
1200V, 50A
FP50R12N2T7P_B11
1200V, 50A		FP50R12N2T7_B11
1200V, 50A		FP50R12KS4C
1200V, 50A		FP50R12N2T7_B19
1200V, 50A
