FP50R12W2T7 Infineon - IGBT Module

Category: IGBT Modules

Specifications: 1200V, 50A

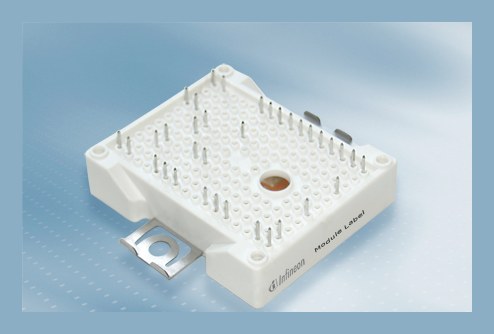

FP50R12W2T7 Infineon IGBT Module

Representative image – actual product may differ

Availability and lead time are confirmed in our quote.

  • ✓ Quote within 24 hours
  • ✓ Original manufacturer parts, inspected before shipping
  • ✓ Credit cards and NET terms accepted

Or email sales@uscomponent.com or call 1-281-968-0718.

FP50R12W2T7 Description

FP50R12W2T7 is a 1200 V, 50 A Infineon EasyPIM 2B IGBT module (pim), used for compact motor drives and servo drives.

USComponent supplies FP50R12W2T7 and other Infineon power modules. Request a quote for price and lead time - we reply within 24 hours.

Summary of Features

  • TRENCHSTOP™ IGBT7
  • Overload operation up to 175°C
  • Low VCE,sat
  • Al2O3 substrate with low thermal resistance
  • Solder contact technology
  • High power density
  • Compact design
  • 2.5 kV AC 1 minute insulation

Target Applications

Infineon FP50R12W2T7 is used for air conditioning, auxiliary inverters and motor drives.

Key Specifications

FP50R12W2T7 is a 1,200 V, 50 A Infineon IGBT module. Source: manufacturer datasheet.

ParameterValue
Product typeIGBT module
ConfigurationPIM (rectifier + brake chopper + 3-phase inverter)
Collector-emitter voltage (VCES)1,200 V
Collector current (IC nom)50 A
TechnologyTRENCHSTOP IGBT7 with Emitter Controlled 7 diode
PackageEasyPIM 2B

Technical document (PDF)  |  Request a quote for FP50R12W2T7 (reply within 24 hours)
