FP50R12W3T7_B11 Infineon - IGBT Module

Also written as: FP50R12W3T7-B11

Category: IGBT Modules

Specifications: 1200V, 50A

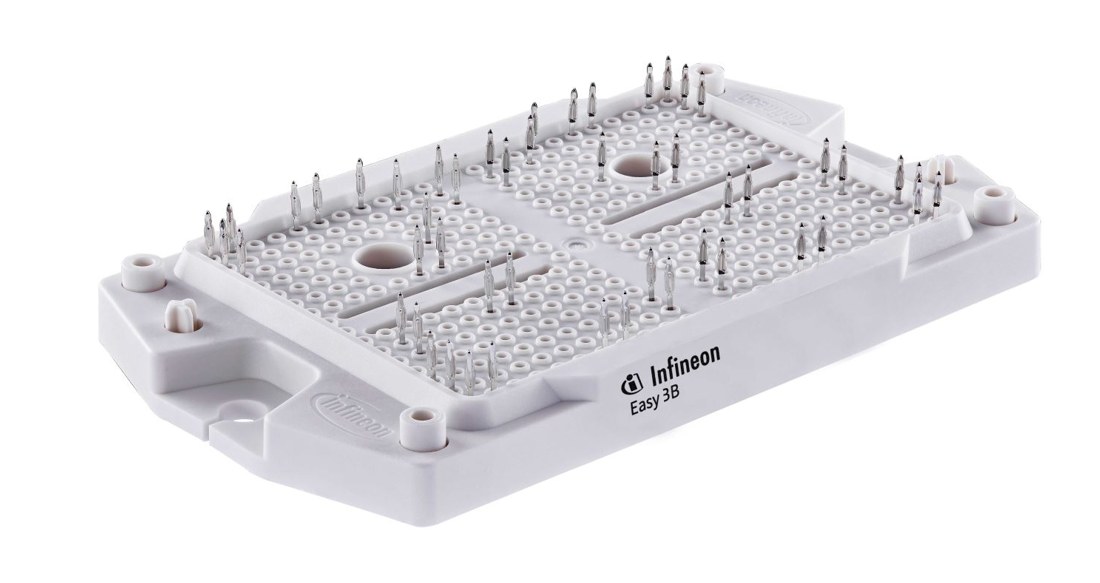

FP50R12W3T7_B11 Infineon IGBT Module

Representative image – actual product may differ

Availability and lead time are confirmed in our quote.

  • ✓ Quote within 24 hours
  • ✓ Original manufacturer parts, inspected before shipping
  • ✓ Credit cards and NET terms accepted

Or email sales@uscomponent.com or call 1-281-968-0718.

FP50R12W3T7_B11 Description

FP50R12W3T7_B11 is a 1200 V / 50 A PIM (rectifier + brake + inverter) IGBT module from Infineon Technologies. Typical applications: motor drives, Air conditioning, Auxiliary inverters.

USComponent supplies FP50R12W3T7_B11 and other Infineon power modules. Request a quote for price and lead time - we reply within 24 hours.

Summary of Features

  • TRENCHSTOP IGBT7
  • Overload operation up to 175°C
  • PressFIT contact technology
  • High power density
  • Package with CTI > 400

Target Applications

Infineon FP50R12W3T7_B11 is used for Motor drives, Air conditioning, Auxiliary inverters.

Key Specifications

FP50R12W3T7_B11 is a 1200 V / 50 A PIM (rectifier + brake + inverter) IGBT module from Infineon Technologies (EasyPIM package). Source: Infineon datasheet and product table.

ParameterValue
ManufacturerInfineon Technologies
Product typeIGBT module
ConfigurationPIM (rectifier + brake + inverter)
Collector-emitter voltage (VCES)1200 V
Nominal collector current (IC nom)50 A
PackageEasyPIM
DatasheetAvailable on this page (PDF)

Technical document (PDF)  |  Request a quote for FP50R12W3T7_B11 (reply within 24 hours)

Related Part Numbers

FP50R12W2T7_B11
1200V, 50A		FP75R12W3T7_B11
1200V, 75A		FP100R12W3T7_B11
1200V, 100A		FP35R12W2T7_B11
1200V, 35A
FP25R12W1T7_B11
1200V, 25A		FP25R12W2T7_B11
1200V, 25A		FP15R12W1T7_B11
1200V, 15A		FP10R12W1T7_B11
1200V, 10A
FP50R12W2T7P
1200V, 50A		FP50R12W2T7
1200V, 50A		FP50R12N2T7_B19
1200V, 50A		FP50R12N2T7_B11
1200V, 50A
FP50R12N2T7P_B11
1200V, 50A		FP50R12N2T7P
1200V, 50A		FP50R12N2T7
1200V, 50A		FP50R12KT4_B11
1200V, 50A
