FP50R12KT3 Infineon - IGBT Module

FP50R12KT3 Description

The Infineon Technologies FP50R12KT3 is an IGBT module, rated for 1200 V. Inside, it has a PIM layout, with the input rectifier, brake chopper and three-phase inverter in one package. Typical uses include motor drives, servo amplifiers, induction heating, welding power sources and grid-tie inverters.

USComponent has sourced power semiconductors for maintenance teams and OEMs since 2001. For price and availability of the FP50R12KT3, send us a request for quote. Please confirm the specifications against the manufacturer's datasheet before purchase.

Summary of Features

Target Applications

Infineon FP50R12KT3 is used for inverters and AC motor drives, servo drives, UPS systems, welding machines, induction heating, solar and wind power converters and other high-power switching equipment.

Key Specifications

FP50R12KT3 is a 1,200 V, 50 A IGBT module, pIM (converter + brake + inverter) configuration. Source: manufacturer datasheet.

Parameter	Value
Product type	IGBT module
Configuration	PIM (converter + brake + inverter)
Collector-emitter voltage (VCES)	1,200 V
Collector current (IC)	50 A

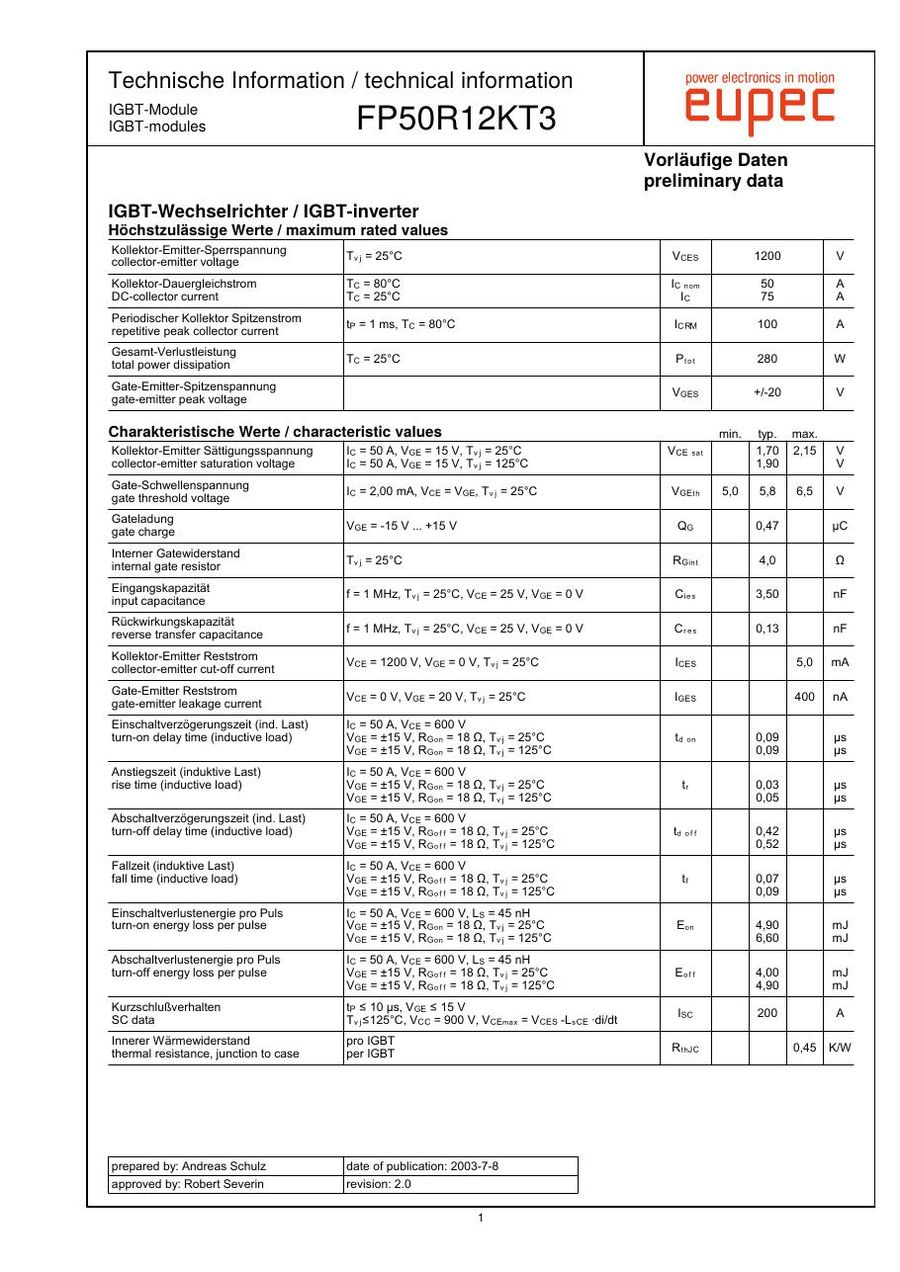

Datasheet	Available on this page (PDF)

Technical document (PDF)  |  Request a quote for FP50R12KT3 (reply within 24 hours)
