FP50R12KT4 Infineon - IGBT Module

FP50R12KT4 Description

The FP50R12KT4 from Infineon Technologies is an IGBT module with a 1200 V / 50 A rating. The module contains a PIM layout, with the input rectifier, brake chopper and three-phase inverter in one package. It is a common choice for inverter stages in AC drives, servo systems, welders and uninterruptible power supplies.

Need the FP50R12KT4? USComponent stocks and sources power modules for repair shops, OEMs and maintenance teams worldwide. Request a quote and we'll confirm availability and lead time. Always compare against the datasheet before ordering.

Summary of Features

Target Applications

Infineon FP50R12KT4 is used for High Power Switching, A.C. Motor Controls, D.C. Motor Controls, Uninterruptible Power Supply, Inverter for motor drive.

Key Specifications

FP50R12KT4 is a 1,200 V, 50 A IGBT module, pIM (converter + brake + inverter) configuration. Source: manufacturer datasheet.

Parameter	Value
Product type	IGBT module
Configuration	PIM (converter + brake + inverter)
Collector-emitter voltage (VCES)	1,200 V
Collector current (IC)	50 A

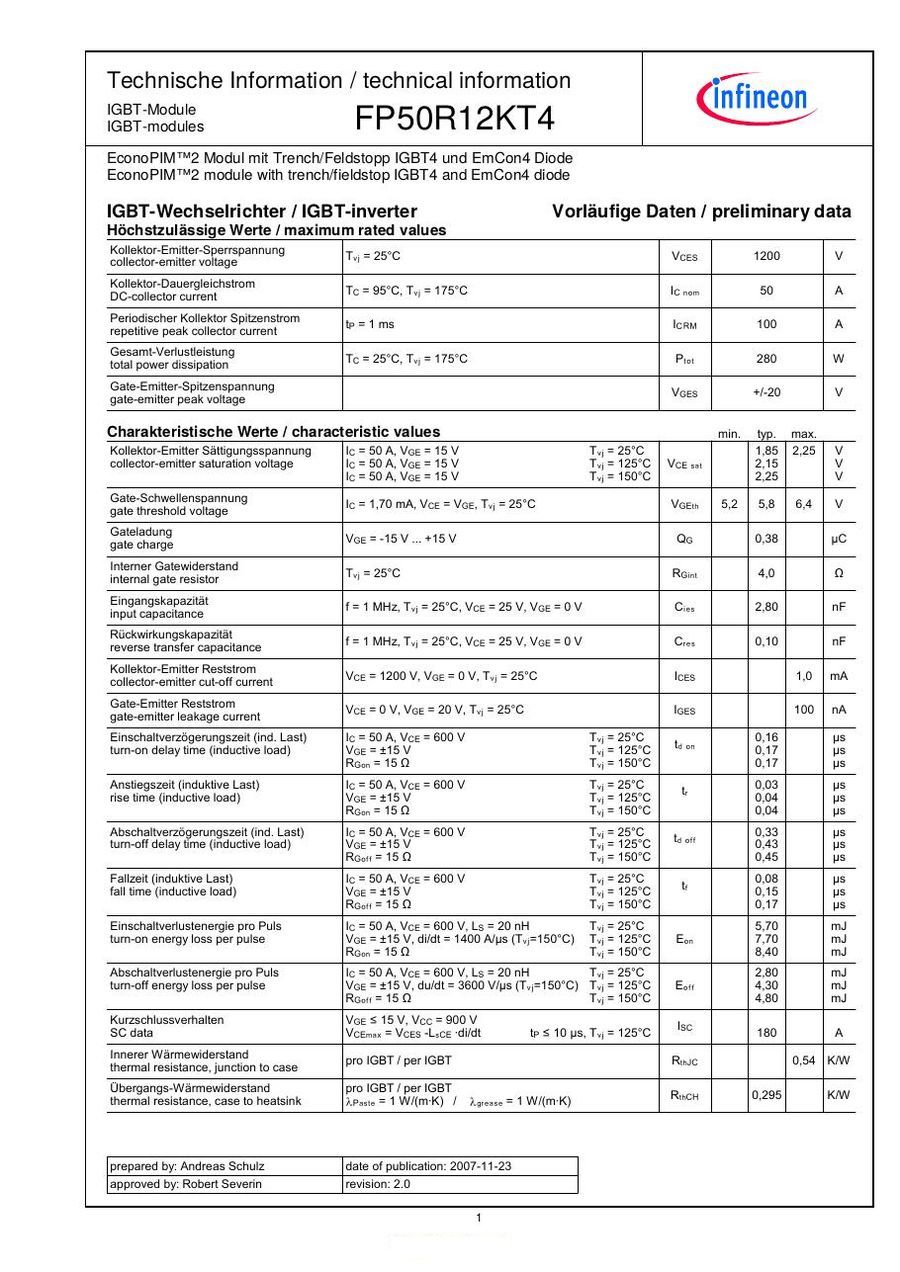

Datasheet	Available on this page (PDF)

Technical document (PDF)  |  Request a quote for FP50R12KT4 (reply within 24 hours)
