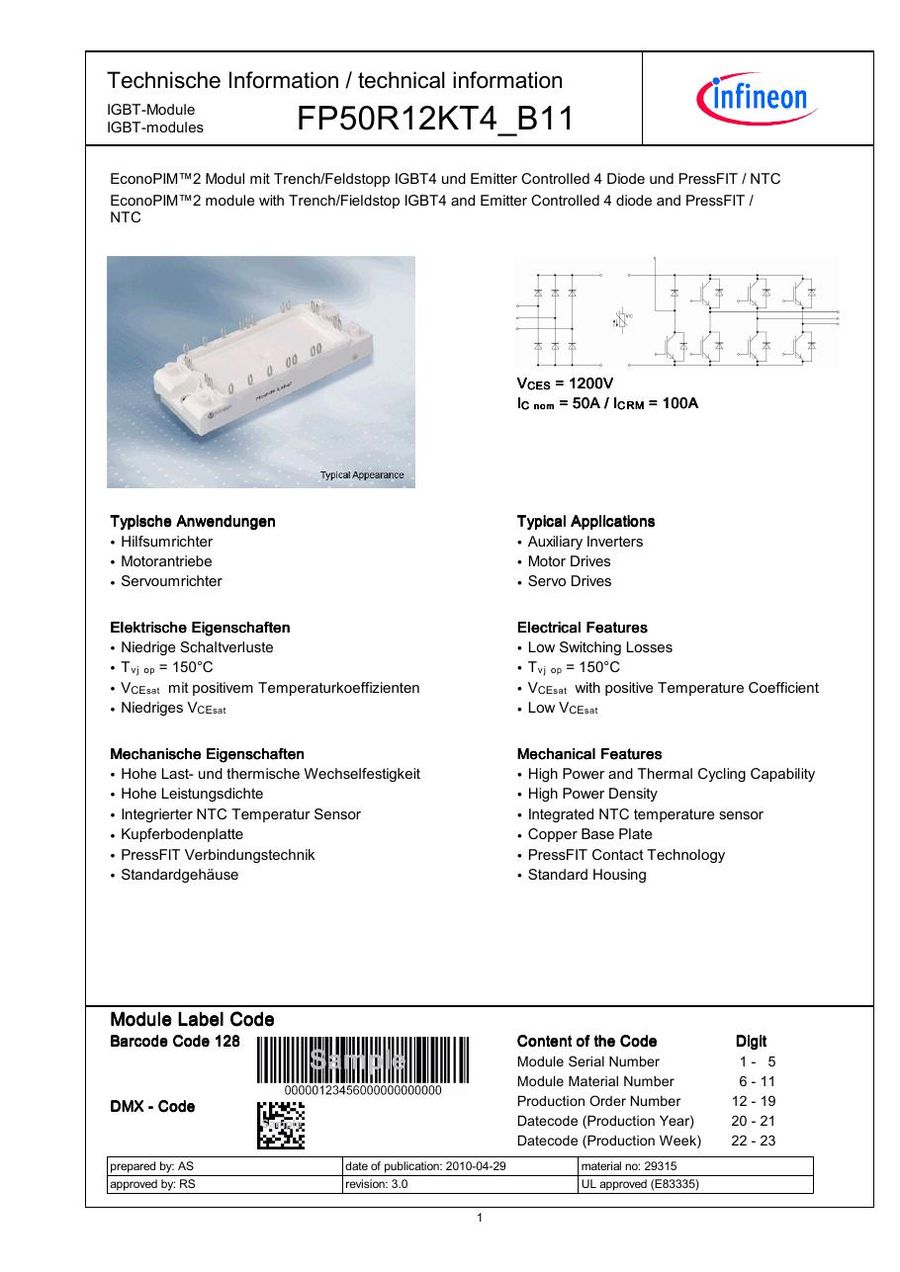

FP50R12KT4_B11 Infineon - IGBT Module

FP50R12KT4_B11 Description

Infineon Technologies makes the FP50R12KT4_B11, an IGBT module. The module contains a PIM layout, with the input rectifier, brake chopper and three-phase inverter in one package. It is a common choice for inverter stages in AC drives, servo systems, welders and uninterruptible power supplies.

Looking for a replacement FP50R12KT4_B11? USComponent can quote new and hard-to-find stock and ships worldwide. Request a quote for pricing and lead time, and double-check the datasheet to make sure it fits your application.

Summary of Features

Target Applications

Infineon FP50R12KT4_B11 is used for inverters and AC motor drives, servo drives, UPS systems, welding machines, induction heating, solar and wind power converters and other high-power switching equipment.

Key Specifications

FP50R12KT4_B11 is a 1,200 V, 50 A IGBT module, pIM (converter + brake + inverter) configuration. Source: manufacturer datasheet.

Parameter	Value
Product type	IGBT module
Configuration	PIM (converter + brake + inverter)
Collector-emitter voltage (VCES)	1,200 V
Collector current (IC)	50 A
Datasheet	Available on this page (PDF)
