FP35R12KT4_B11 Infineon - IGBT Module

FP35R12KT4_B11 Description

Infineon Technologies makes the FP35R12KT4_B11, an IGBT module. The module contains a PIM layout, with the input rectifier, brake chopper and three-phase inverter in one package. You'll typically find it in variable-frequency drives, servo amplifiers, UPS systems, welding machines and solar or wind inverters.

USComponent has sourced power semiconductors for maintenance teams and OEMs since 2001. For price and availability of the FP35R12KT4_B11, send us a request for quote. Please confirm the specifications against the manufacturer's datasheet before purchase.

Summary of Features

Target Applications

Infineon FP35R12KT4_B11 is used for inverters and AC motor drives, servo drives, UPS systems, welding machines, induction heating, solar and wind power converters and other high-power switching equipment.

Key Specifications

FP35R12KT4_B11 is a 1,200 V, 35 A IGBT module, pIM (converter + brake + inverter) configuration. Source: manufacturer datasheet.

Parameter	Value
Product type	IGBT module
Configuration	PIM (converter + brake + inverter)
Collector-emitter voltage (VCES)	1,200 V
Collector current (IC)	35 A

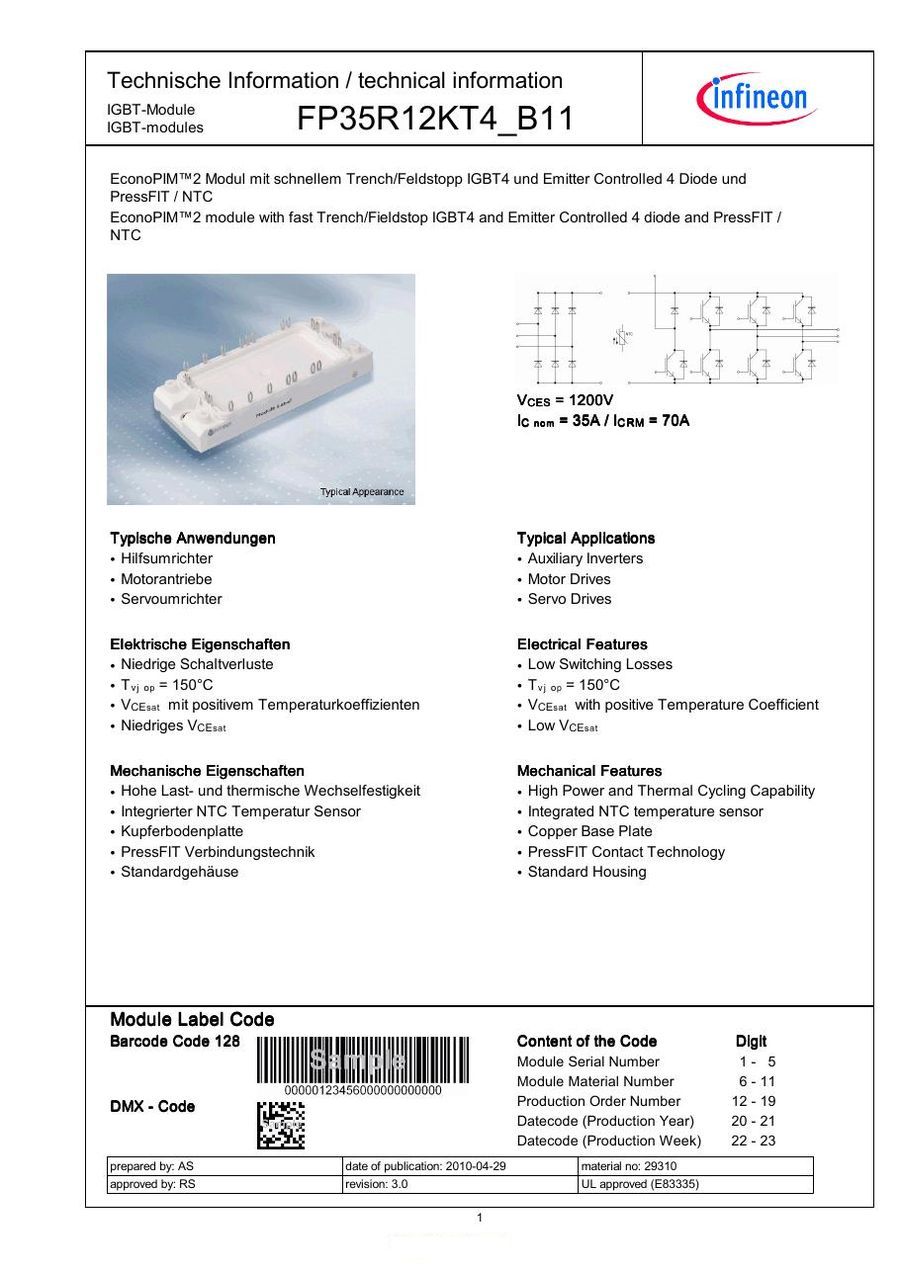

Datasheet	Available on this page (PDF)

Technical document (PDF)  |  Request a quote for FP35R12KT4_B11 (reply within 24 hours)
