FP35R12N2T7_B11 Infineon - IGBT Module

Also written as: FP35R12N2T7-B11

Category: IGBT Modules

Specifications: 1200V, 35A

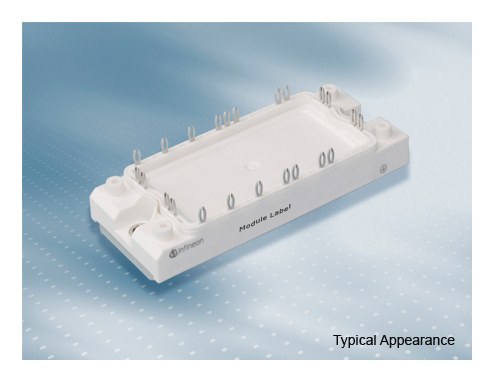

FP35R12N2T7_B11 Infineon IGBT Module

Representative image – actual product may differ

Availability and lead time are confirmed in our quote.

  • ✓ Quote within 24 hours
  • ✓ Original manufacturer parts, inspected before shipping
  • ✓ Credit cards and NET terms accepted

Or email sales@uscomponent.com or call 1-281-968-0718.

FP35R12N2T7_B11 Description

FP35R12N2T7_B11 is a 1200 V / 35 A PIM (rectifier + brake + inverter) IGBT module from Infineon Technologies. Typical applications: auxiliary inverters, Motor drives, Servo drives.

USComponent supplies FP35R12N2T7_B11 and other Infineon power modules. Request a quote for price and lead time - we reply within 24 hours.

Summary of Features

  • TRENCHSTOP IGBT7
  • Low VCEsat
  • Overload operation up to 175°C
  • High power and thermal cycling capability
  • Integrated NTC temperature sensor
  • Copper base plate

Target Applications

Infineon FP35R12N2T7_B11 is used for Auxiliary inverters, Motor drives, Servo drives.

Key Specifications

FP35R12N2T7_B11 is a 1200 V / 35 A PIM (rectifier + brake + inverter) IGBT module from Infineon Technologies (EconoPIM 2 package). Source: Infineon datasheet and product table.

ParameterValue
ManufacturerInfineon Technologies
Product typeIGBT module
ConfigurationPIM (rectifier + brake + inverter)
Collector-emitter voltage (VCES)1200 V
Nominal collector current (IC nom)35 A
PackageEconoPIM 2
DatasheetAvailable on this page (PDF)

Technical document (PDF)  |  Request a quote for FP35R12N2T7_B11 (reply within 24 hours)
