FP75R12KT4_B15 Infineon - IGBT Module

FP75R12KT4_B15 Description

Infineon Technologies FP75R12KT4_B15 is an IGBT module rated at 1200 V and 75 A. The module contains a PIM layout, with the input rectifier, brake chopper and three-phase inverter in one package. Modules like this do the heavy switching in motor drives, UPS systems, induction heaters and renewable-energy inverters.

USComponent has sourced power semiconductors for maintenance teams and OEMs since 2001. For price and availability of the FP75R12KT4_B15, send us a request for quote. Please confirm the specifications against the manufacturer's datasheet before purchase.

Summary of Features

Target Applications

Infineon FP75R12KT4_B15 is used for inverters and AC motor drives, servo drives, UPS systems, welding machines, induction heating, solar and wind power converters and other high-power switching equipment.

Key Specifications

FP75R12KT4_B15 is a 1,200 V, 75 A IGBT module, pIM (converter + brake + inverter) configuration. Source: manufacturer datasheet.

Parameter	Value
Product type	IGBT module
Configuration	PIM (converter + brake + inverter)
Collector-emitter voltage (VCES)	1,200 V
Collector current (IC)	75 A

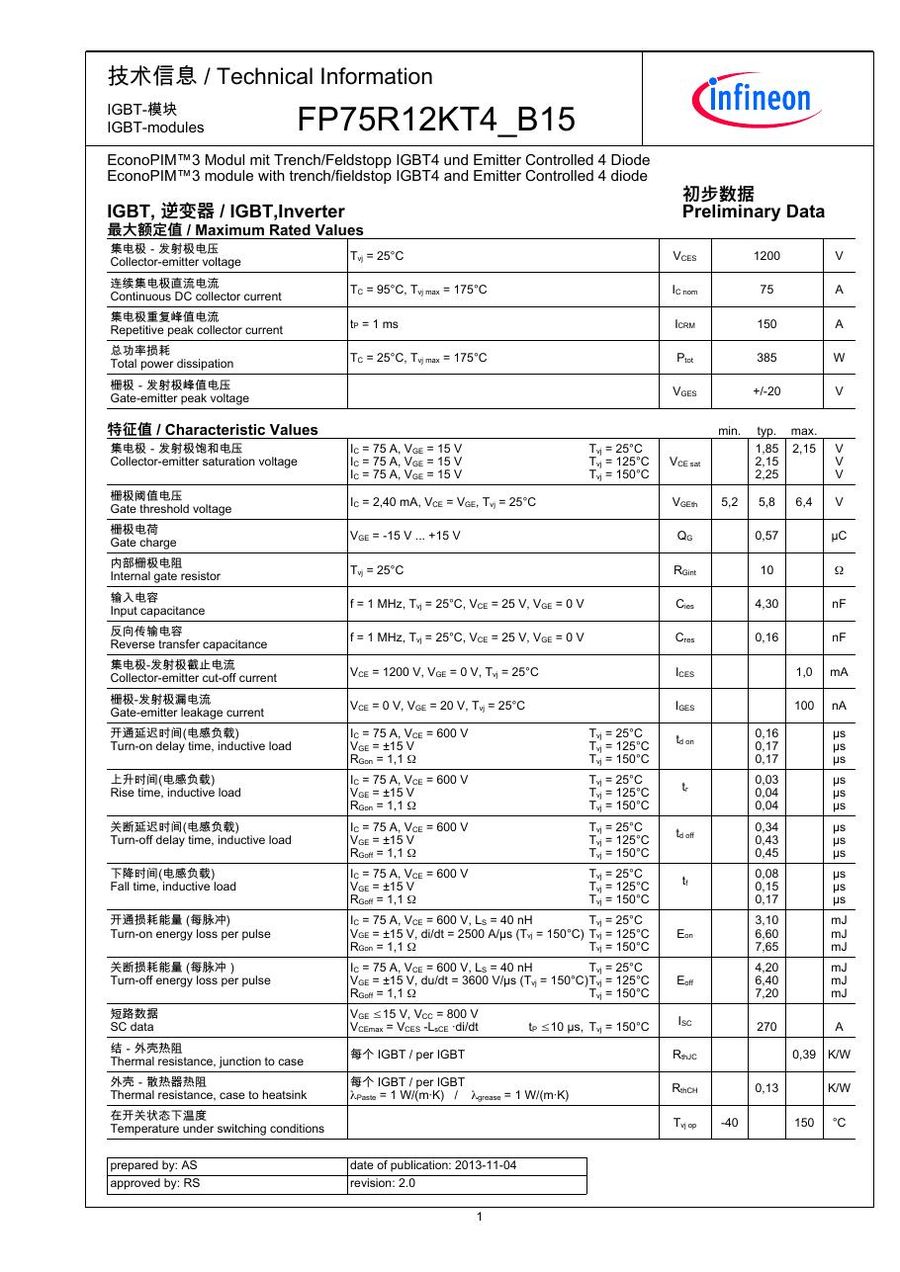

Datasheet	Available on this page (PDF)

Technical document (PDF)  |  Request a quote for FP75R12KT4_B15 (reply within 24 hours)
