FP35R12N2T7 Infineon - IGBT Module

Category: IGBT Modules

Specifications: 1200V, 35A

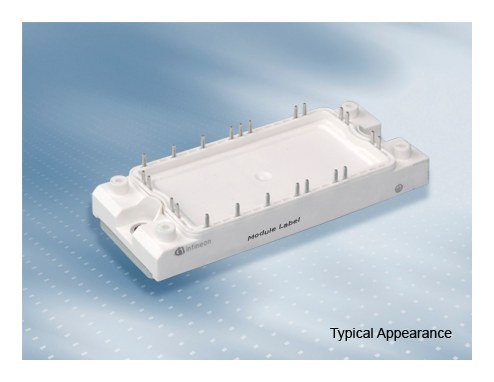

FP35R12N2T7 Infineon IGBT Module

Representative image – actual product may differ

Availability and lead time are confirmed in our quote.

  • ✓ Quote within 24 hours
  • ✓ Original manufacturer parts, inspected before shipping
  • ✓ Credit cards and NET terms accepted

Or email sales@uscomponent.com or call 1-281-968-0718.

FP35R12N2T7 Description

FP35R12N2T7 is a 1200 V / 35 A PIM (rectifier + brake + inverter) IGBT module from Infineon Technologies. Typical applications: auxiliary inverters, Motor drives, Servo drives.

USComponent supplies FP35R12N2T7 and other Infineon power modules. Request a quote for price and lead time - we reply within 24 hours.

Summary of Features

  • TRENCHSTOP IGBT7
  • Low VCEsat
  • Overload operation up to 175°C
  • High power and thermal cycling capability
  • Integrated NTC temperature sensor
  • Copper base plate

Target Applications

Infineon FP35R12N2T7 is used for Auxiliary inverters, Motor drives, Servo drives.

Key Specifications

FP35R12N2T7 is a 1200 V / 35 A PIM (rectifier + brake + inverter) IGBT module from Infineon Technologies (EconoPIM 2 package). Source: Infineon datasheet and product table.

ParameterValue
ManufacturerInfineon Technologies
Product typeIGBT module
ConfigurationPIM (rectifier + brake + inverter)
Collector-emitter voltage (VCES)1200 V
Nominal collector current (IC nom)35 A
PackageEconoPIM 2
DatasheetAvailable on this page (PDF)

Technical document (PDF)  |  Request a quote for FP35R12N2T7 (reply within 24 hours)

Related Part Numbers

FP25R12N2T7
1200V, 25A		FP50R12N2T7
1200V, 50A		FP75R12N2T7
1200V, 75A		FP100R12N2T7
1200V, 100A
FP75R12N2T4
1200V, 75A		FP75R12N3T7
1200V, 75A		FP100R12N3T7
1200V, 100A		FP150R12N3T7
1200V, 150A
FP35R12N2T7_B11
1200V, 35A		FP35R12KT4_B15
1200V, 35A		FP35R12N2T7_B67
1200V, 35A		FP35R12KT4_B11
1200V, 35A
FP35R12U1T4
1200V, 35A		FP35R12KT4P
1200V, 35A		FP35R12W2T4
1200V, 35A		FP35R12KT4
1200V, 35A
