FP35R12U1T4 Infineon - IGBT Module

FP35R12U1T4 Description

Infineon Technologies FP35R12U1T4 is an IGBT module rated at 1200 V and 35 A. It is built with a PIM layout, with the input rectifier, brake chopper and three-phase inverter in one package. It is a common choice for inverter stages in AC drives, servo systems, welders and uninterruptible power supplies. If you are repairing older equipment, we can usually find this exact part, including date codes that are no longer in production.

USComponent has been supplying power semiconductors since 2001, including discontinued and hard-to-find part numbers. Send us an RFQ for the FP35R12U1T4 and we will reply with price, condition and lead time. Please check the manufacturer's datasheet to confirm ratings, package and pin-out before you order.

Summary of Features

Target Applications

Infineon FP35R12U1T4 is used for Auxiliary Inverters, Air Conditioning, Motor Drives and Servo Drives.

Key Specifications

FP35R12U1T4 is a 1,200 V, 35 A IGBT module, pIM (converter + brake + inverter) configuration. Source: manufacturer datasheet.

Parameter	Value
Product type	IGBT module
Configuration	PIM (converter + brake + inverter)
Collector-emitter voltage (VCES)	1,200 V
Collector current (IC)	35 A

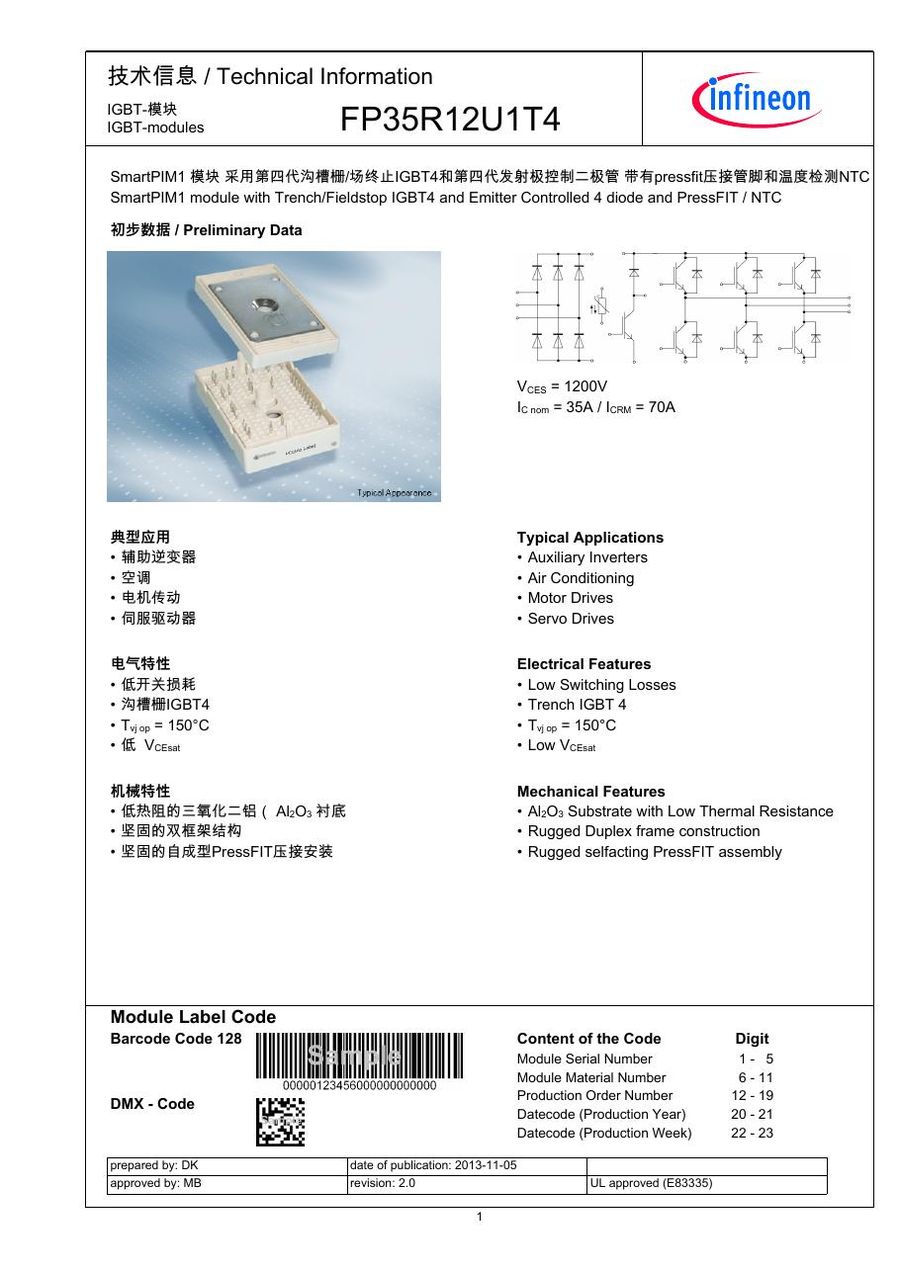

Datasheet	Available on this page (PDF)

Technical document (PDF)  |  Request a quote for FP35R12U1T4 (reply within 24 hours)
