FF1400R23T2E7_B5 Infineon - IGBT Module

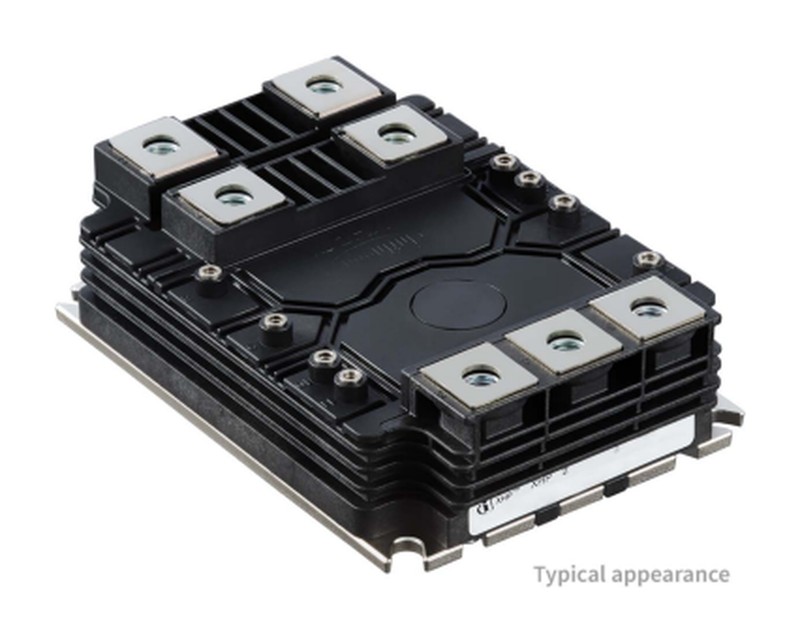

FF1400R23T2E7_B5 Description

FF1400R23T2E7_B5 is a 2,300 V / 1,400 A XHP™ 2 half-bridge IGBT module from Infineon Technologies (TRENCHSTOP™ IGBT7). Datasheet ratings: ICRM 2,800 A, VCE(sat) 1.85 V typ. at 1,400 A, 6.0 kV isolation, Tvj op up to 175 °C. Potential applications: High-power converters, Motor drives, Wind turbines. Infineon lists it as active and preferred.

USComponent supplies FF1400R23T2E7_B5 and other Infineon / eupec IGBT modules. Request a quote for price and lead time - we reply within 24 hours.

Summary of Features

Target Applications

Infineon FF1400R23T2E7_B5 is used for High-power converters, Motor drives and Wind turbines.

Key Specifications

FF1400R23T2E7_B5 is a 2,300 V / 1,400 A XHP™ 2 half-bridge IGBT module from Infineon Technologies (TRENCHSTOP™ IGBT7). Source: Infineon datasheet (2025-07-29).

Parameter	Value
Manufacturer	Infineon Technologies
Product type	IGBT module
Housing	XHP™ 2
Configuration	Half-bridge (dual)
Technology	TRENCHSTOP™ IGBT7
Collector-emitter voltage (VCES)	2,300 V
Nominal collector current (IC nom)	1,400 A
Continuous DC collector current	1,150 A (TC = 80 °C, Tvj max = 175 °C)
Repetitive peak collector current (ICRM)	2,800 A
VCE(sat), IC = 1,400 A, VGE = 15 V, Tvj = 25 °C	1.85 V typ. / 2.30 V max.
Gate threshold voltage VGEth (Tvj = 25 °C)	5.15 / 5.80 / 6.45 V (min. / typ. / max.)
Diode forward voltage VF, IF = 1,400 A, Tvj = 25 °C	3.05 V typ. / 3.45 V max.
Temperature under switching conditions (Tvj op)	-40 to +175 °C
Storage temperature (Tstg)	-40 to +150 °C
Isolation test voltage (VISOL, RMS, 50 Hz, 1 min)	6.0 kV
Mounting torque, module (M6)	4.25 - 5.75 N·m
Terminal connection torque (M3)	0.9 - 1.1 N·m
Terminal connection torque (M8)	8 - 10 N·m
Weight	720 g
Dimensions	140 x 100 mm
Ordering code (OPN)	FF1400R23T2E7B5BPSA1
Status (Infineon)	Active and preferred
Applications (datasheet)	High-power converters, Motor drives, Wind turbines
Datasheet	Available on this page (PDF)

Technical document (PDF)  |  Request a quote for FF1400R23T2E7_B5 (reply within 24 hours)
